Helper Machinery Group Co., Ltd.
$20000-25000 /Set/Sets
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
Share:
Model No.: QKJ-II
Brand: Helper
Origin: China
Certification: ISO 9001-2008, CE
Type: Meat Slicers
Voltage: 380V
Customized: Customized
Material: Stainless Steel
Application: Meat And Sausage Making
| Selling Units | : | Set/Sets |
| Package Type | : | Seaworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

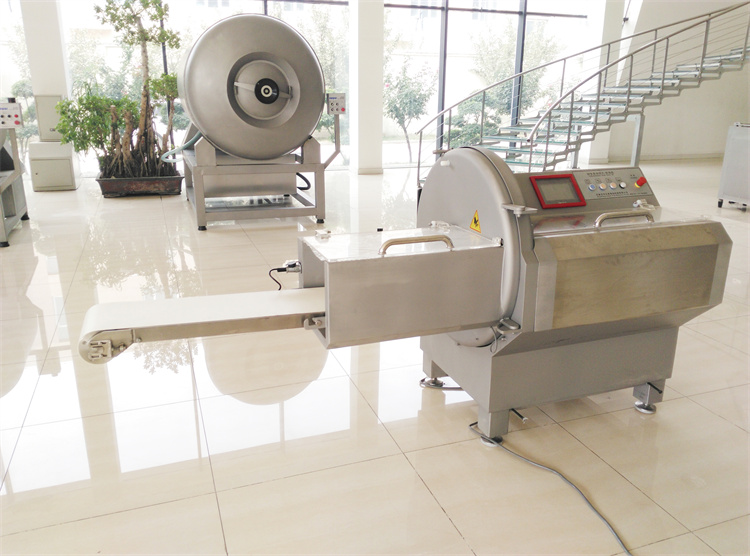

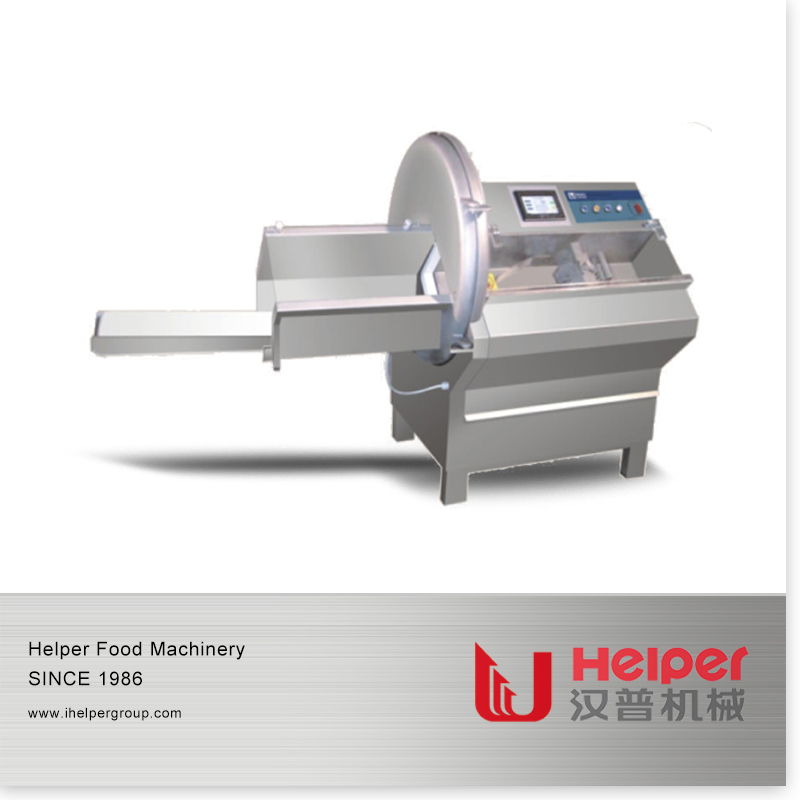

Brief Introduction Of Industrial Slicer With Portioning
With the excellent portioning cutting function, pack weight is controlled as a result of the changing of thickness, speed, and circle period. Producing perfect slices from 1 to 32mm at up to 280 pieces per minute, Helper slicer can meet most of the requirements in industrial application.
Features and Advantages Of Industrial Slicer

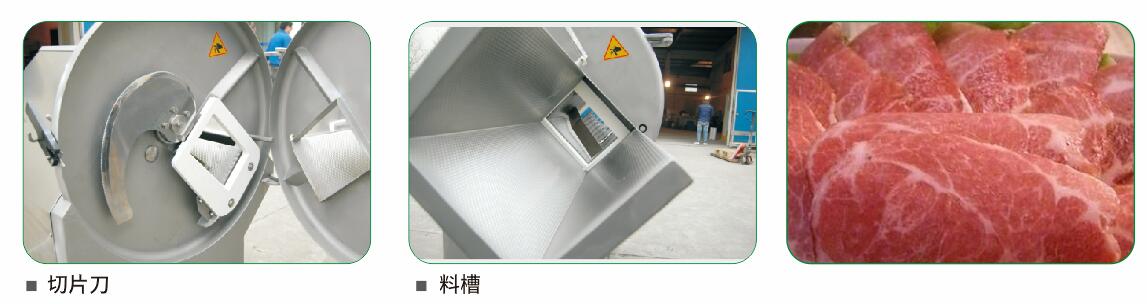

--- It adopts gentle circular blade technology.
--- Large cutting width design, maximum to 360mm.
--- Precision screw holding device to control the raw material with tolerance 0.01mm.
--- Human Machine Interface is adopted to set slicing parameters.
--- Servo motor, reducer and blades are connected in direct combination mode to ensure the precision and high efficiency.
--- The whole machine is made of Stainless steel.
--- Safety is guaranteed by emergency power off system when open the blades cover, discharging channel, and feeding hopper.
Technical Parameters
Cutting thickness: 1-32mm
Dimensions: 1720*895*1340mm
Chopping length: 700mm
Cutting material temperature: -4℃
Power: 4.8kw
Cutting speed: 200pcs/min
Max. cutting cross-sectional area: 250*240mm
Equipment Film
