Model No.: QZDMTX-440
Brand: Helper
Origin: China
Certification: ISO9001-2008, CE
Applicable Industry: Hotels, Food &Amp; Beverage Factory
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Status: New
Application: Food
Type Of Packaging: Cartons
Packaging Materials: Wood
Degree Of Automation: Automatic
Power Type: Mechanical
Place Of Origin: China
Warranty Period: 1 Year
Core Selling Point: Competitive Price, Automatic, High Productivity, Multifunctional
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Automaticity: High Automation
Material: Stanless Steel
Type: Pastry Processing Machines
| Selling Units | : | Set/Sets |
| Package Type | : | Seaworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

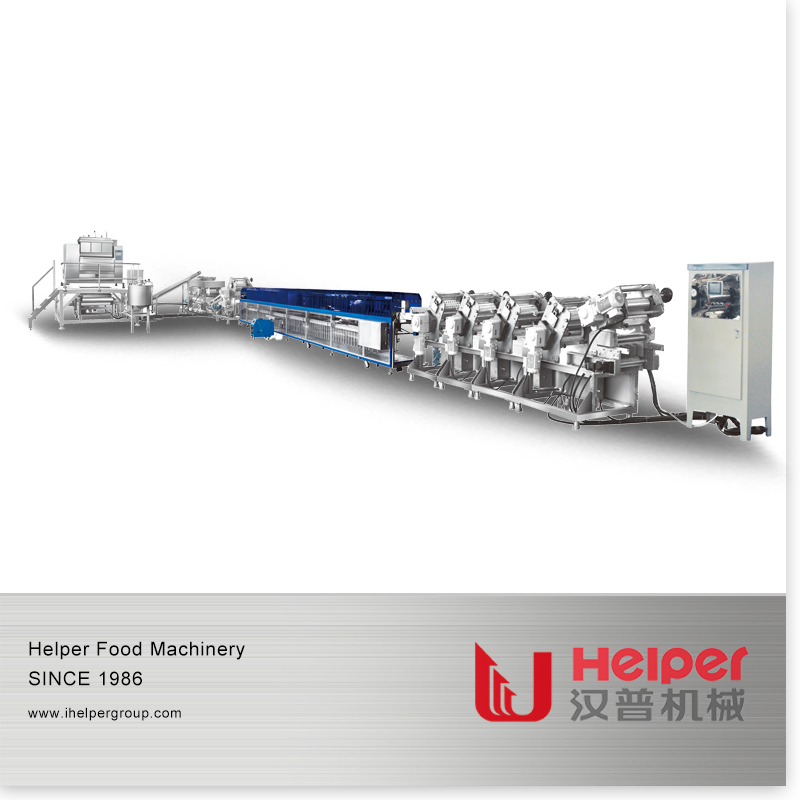

Introduction of Automatic Noodle Production Line
This production line can produce instant wet noodles, quick-frozen cooked noodles, semi-dry noodles, fresh noodles, etc.

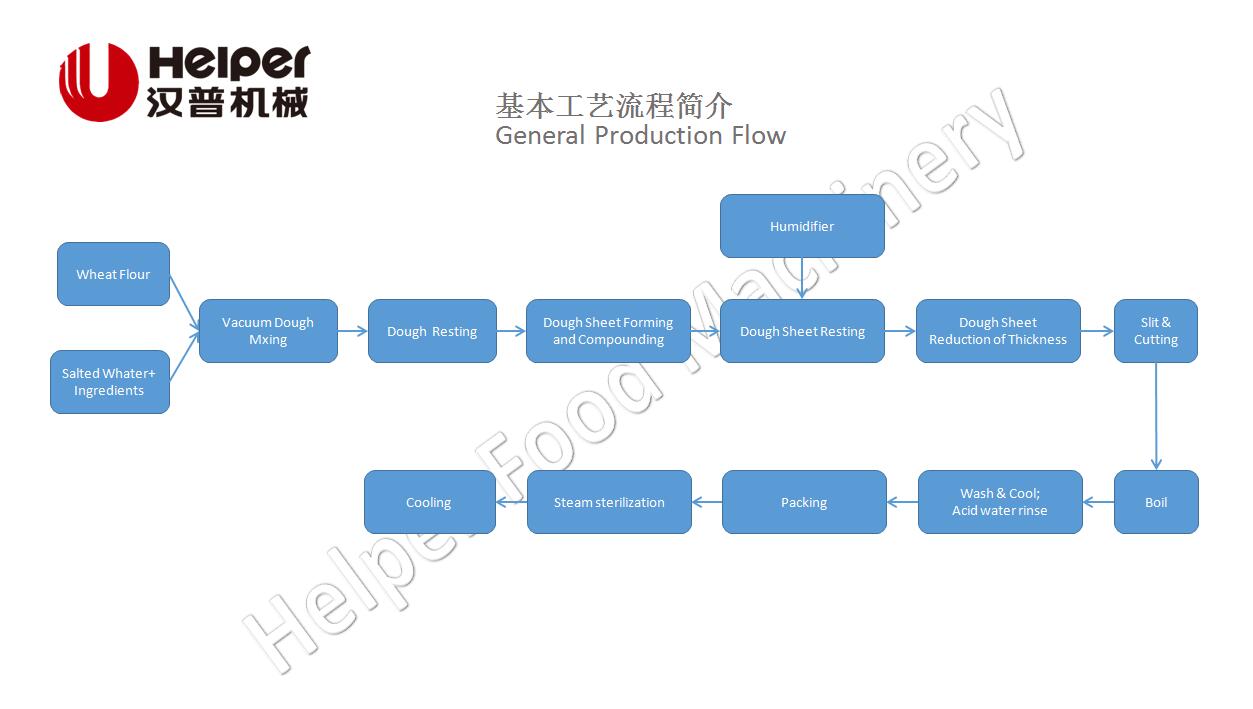

The production line is mainly composed of vacuum dough mixer, dough maturing conveyor, composite tablet press, dough belt elevator, dough belt maturing machine, continuous calender, quantitative cutting system, multi-function noodle cooker, noodle washing machine, PH adjustment equipment, packaging It is composed of machine, confluence detection equipment, sterilization equipment, cooling equipment, etc.
Features of Noodle Production System
1. Processing under the vacuum negative pressure, makes the protein fully absorbing moisture in shortest time, forms the best gluten network and right status tenderness of dough.

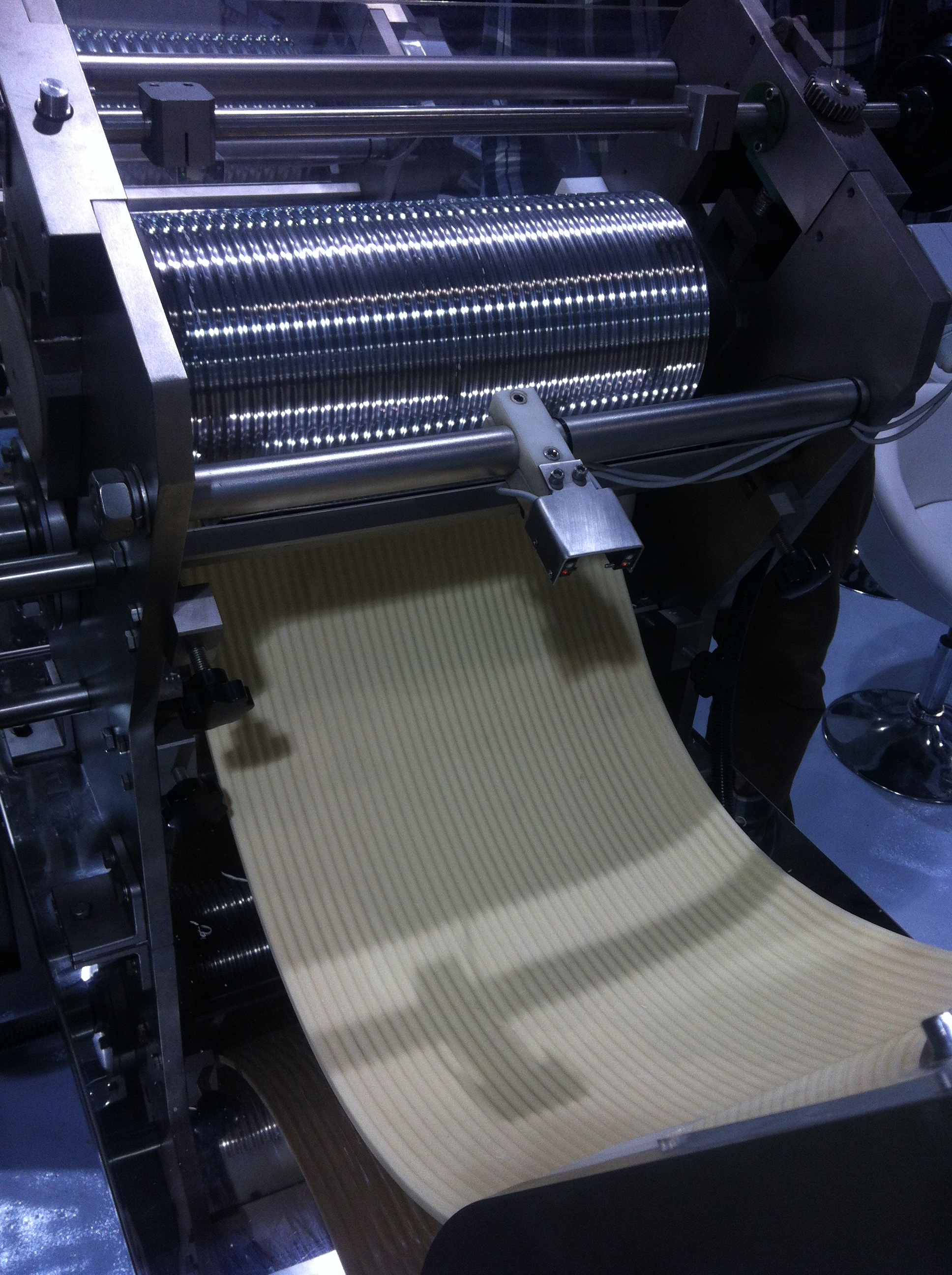

2. Wave rollers, and continuous dough sheet aging system.
3. To produce cooked noodle products with different tastes (such as Udon Noodle)by various techniques such as boiled type and steamed type.
4. By adjusting the process of cooking, cooling and acid soaking, drying, sterilization, etc., it can meet the specific processing requirements of customers.
Major Performance Data of Noodle lines
| Model | Width of Roller(mm) | Power(kw) | Capacity(kg/h) | Component Parts | Dimension (mm) |
| QZDMTX-230 | 230mm | 30.2 | 300 | 15 | 128000*1000*2500 |
| QZDMTX-440 | 440mm | 36 | 700 | 15 | 156000*1200*2900 |
| QZDMTX-800 | 800mm | 70 | 1600 | 15 | 360000*1200*2900 |
Noodle production line films
| Large Scale Noodle Line, roller width 440,800mm
| Small Type Noodle line, roller width 270mm
|

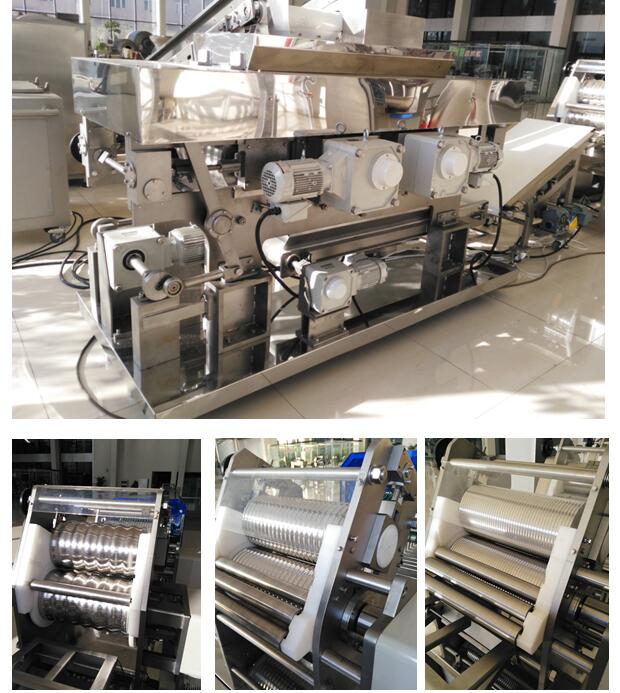

Details and Photos of Noodle production line
About Helper Machinery Group

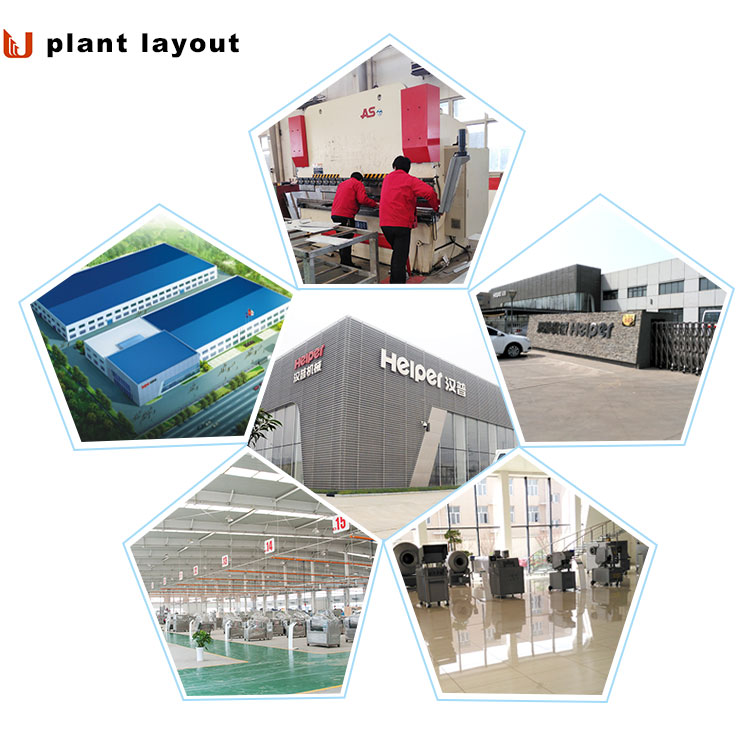

Factory Overview---To understand our production capacity and company strength
 | |
