Brine Injector for Chicken

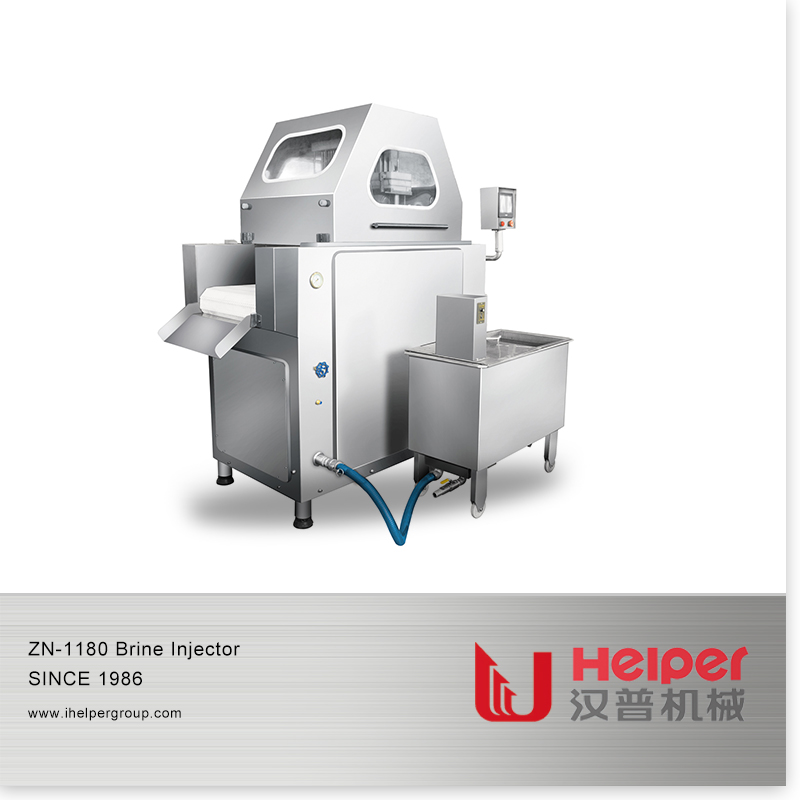

Meat Brine Injector Machine

Meat Brine Injector Machine adopts PLC programmable control system and large windows touch screen to control,easy to operation. Initiative transmission adopts international advanced AC speed regulating technique, with small startup current and excellent startup behavior. Injecting time is stepless speed adjustment. The machine can inject thick meat block such as whole chicken, duck and large meat block, etc. The injection needles adopts pneumatic spring mechanism, and single needle will stop move down when touch hard material such as bone to protect needles. The air pressure of pneumatic spring can be adjusted to make sure not to damage bone structure in raw material. Injection pressure and rate can be adjusted according to meat size and organization structure. The one time injection effect is better than many injection times by common injecting machine. The injection pump is German stainless steel injection pump, with fast injection speed and high injection rate,meet the HACCP standard.

Features and Characters of  Meat Brine Injector Machine:

1. Clear brine system: Helper injector adopts tertiary filtration system to assure the cleanness of brine.
2. Needles and injection: Our machines realize the function of injecting only when the needles are in the product. One complete feet to prevent the product from moving when the needles are retracted.
3. Pneumatic spring design: Because of the unique pneumatic spring design in our machines, the single needle that touch the bone will stop moving ahead.(pressure is adjustable also).
4. Change the needles easily: In our machine, users can reassemble each single needle separately and easily.
5. In case of the needles being blocked, our machines also have a special device inside to unblock the needle easily.
6. There is mixing device in the brine tank in our machine; also cooling system is an option.
7. Injection pressure and rate can be adjustable according to meat size and organization structure in our machines.
8. PLC programmable control system with large touch screen
9. The whole machine adopts SUS304 stainless steel that is compliance with HACCP standard.

Technical parameters of Meat Brine Injector Machine:

Meat Injector Film
