Helper Machinery Group Co., Ltd.
$20000-25000 /Set/Sets
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,FCA,CPT,CIP |
| Min. Order: | 1 Set/Sets |
| Transportation: | Ocean |
Share:
Model No.: QKJ-II
Brand: Helper
Origin: China
Certification: ISO 9001-2008, CE
Applicable Industry: Farms, Food Shop, Restaurant, Manufacturing Plant, Food &Amp; Beverage Shops
Out-of-warranty Service: Spare Parts, Online Support
Status: New
Degree Of Automation: Automatic
Place Of Origin: China
Warranty Period: 1 Year
Material: Stainless Steel
Customized: Customized
Type: Meat Slicers
Application: Meat And Sausage Making
Voltage: 380V
| Selling Units | : | Set/Sets |
| Package Type | : | Seaworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

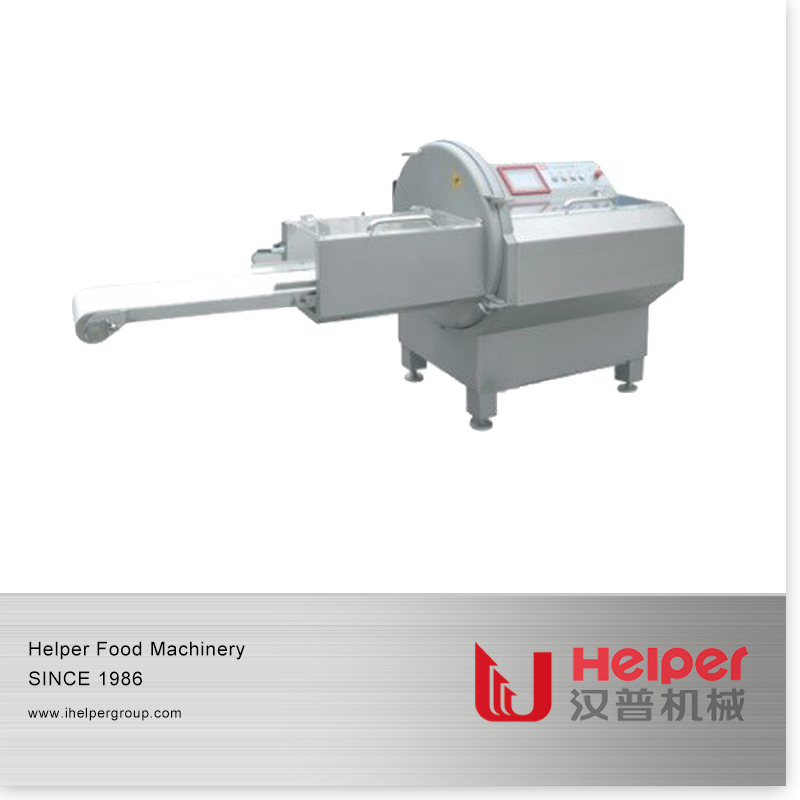

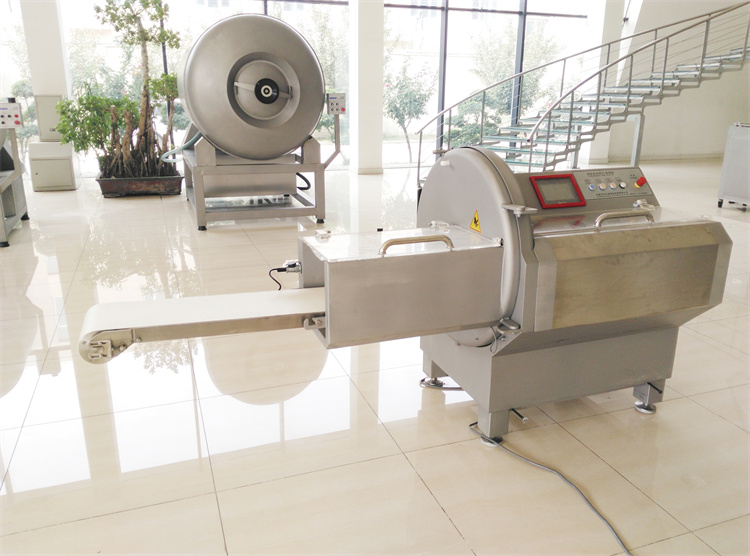

Industrial Slicer With Portioning
With the excellent portioning cutting function, pack weight is controlled as a result of the changing of thickness, speed, and circle period. Producing perfect slices from 1 to 32mm at up to 280 pieces per minute, Helper slicer can meet most of the requirements in industrial application.
Features and Advantages

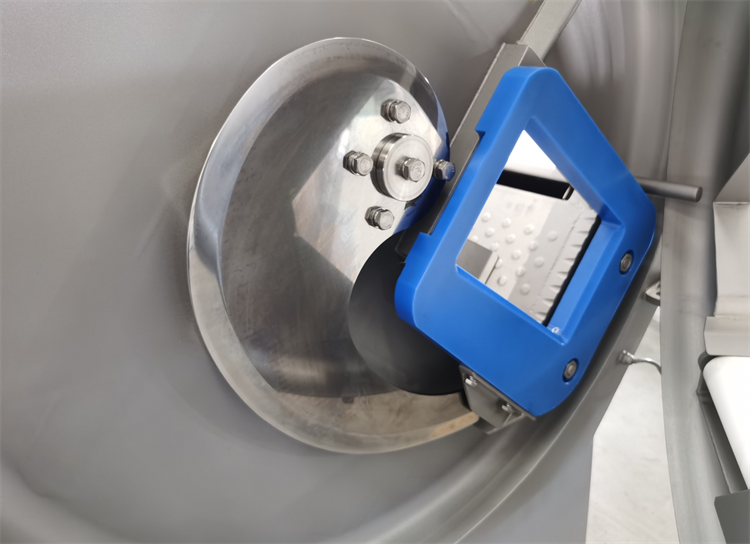

--- It adopts gentle circular blade technology.
--- Large cutting width design, maximum to 360mm.
--- Precision screw holding device to control the raw material with tolerance 0.01mm.
--- Human Machine Interface is adopted to set slicing parameters.
--- Servo motor, reducer and blades are connected in direct combination mode to ensure the precision and high efficiency.
--- The whole machine is made of Stainless steel.

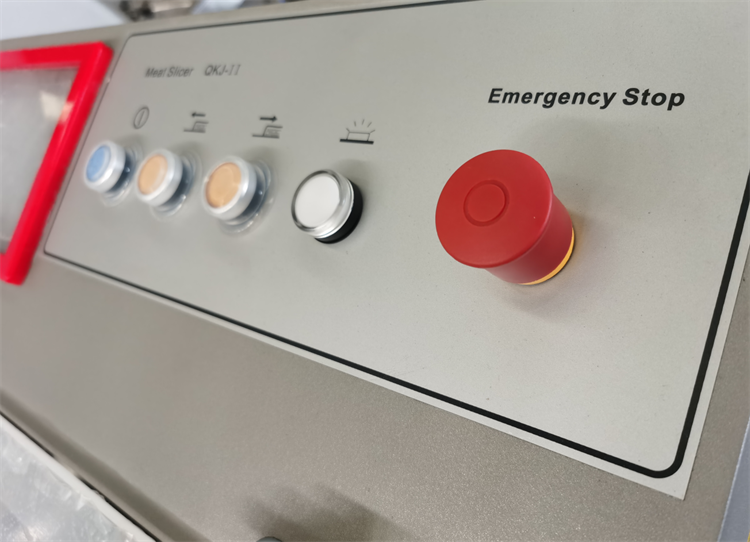

--- Safety is guaranteed by emergency power off system when open the blades cover, discharging channel, and feeding hopper.
Technical Parameters
Cutting thickness: 1-32mm
Dimensions: 1720*895*1340mm
Chopping length: 700mm
Cutting material temperature: -4℃
Power: 4.8kw
Cutting speed: 200pcs/min
Max. cutting cross-sectional area: 250*240mm
Equipment Film
