Model No.: DRQF/2D-300
Brand: Helper
Origin: China
Certification: ISO9001-2008
Type: Diced Machine
Voltage: 380V
Customized: Customized
Automaticity: High Automation Level
| Selling Units | : | Set/Sets |
| Package Type | : | Seaoworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

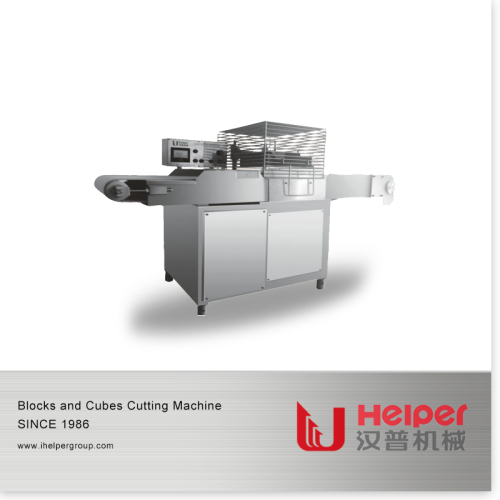

Blocks and Cubes Cutting Machine
Blocks and Cubes Cutting Machine is a two dimensional square meat cutter with cross knife head on the top of the belt. Frozen meat and cooked meat can be cut into square pieces with dimensions from 5 mm to 50 mm. The belt is made of special hard material with a hard plate under the belt, no destroying of meat structure and no fat squeeze separation. Thanks to the frequency control and touch screen control board, the meat dicing dimension is adjustable by setting simple parameters on screen. It is used to cut any kind of meat similar material with plate shape.
Performance data
| Model | Power(kw) | Height of loading(mm) | Dimension of raw material(mm) | Temperature | Cutting range | Speed of knife(r/min) | Weight(kg) | Dimension(mm) |
| DRQF/2D-300 | 4.75 | 55 | Width300 and thickness 45 | -10 | 5mm to 50mm | 84 | 600 | 2015✕811.5✕1240 |
