Model No.: ZB200
Brand: Helper
Origin: China
Certification: ISO9001-2008, CE
Applicable Industry: Food &Amp; Beverage Factory
Status: New
Degree Of Automation: Automatic
Place Of Origin: China
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Core Components: Motor, Plc, Bearing
Core Selling Point: High Rigidity
Type: Bowl Cutter
Voltage: 380v
Customized: Customized
Material: Stanless Steel
Application: Meat Processing
| Selling Units | : | Set/Sets |
| Package Type | : | Seaworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

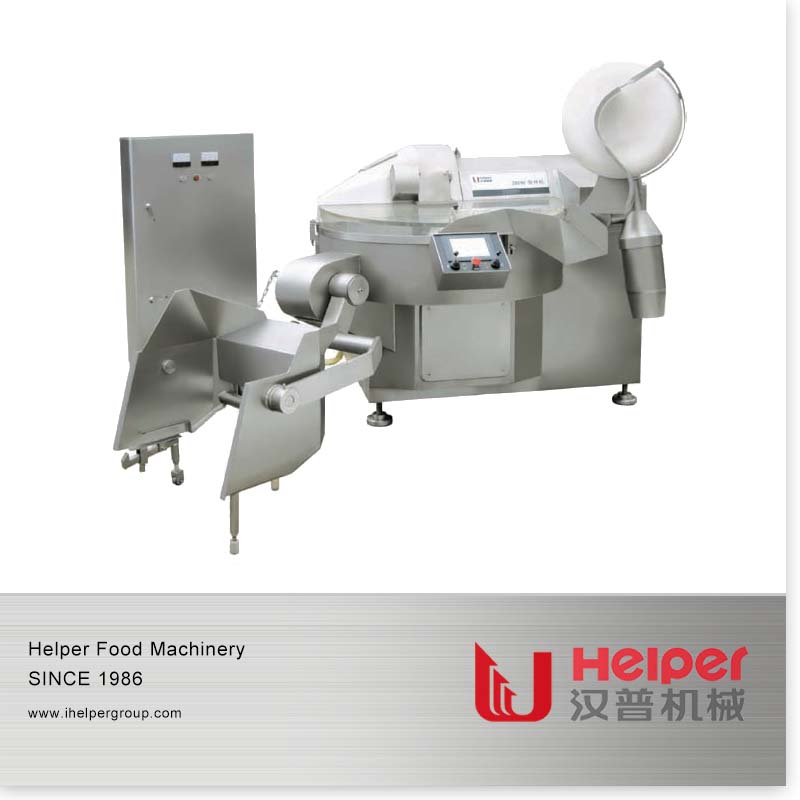

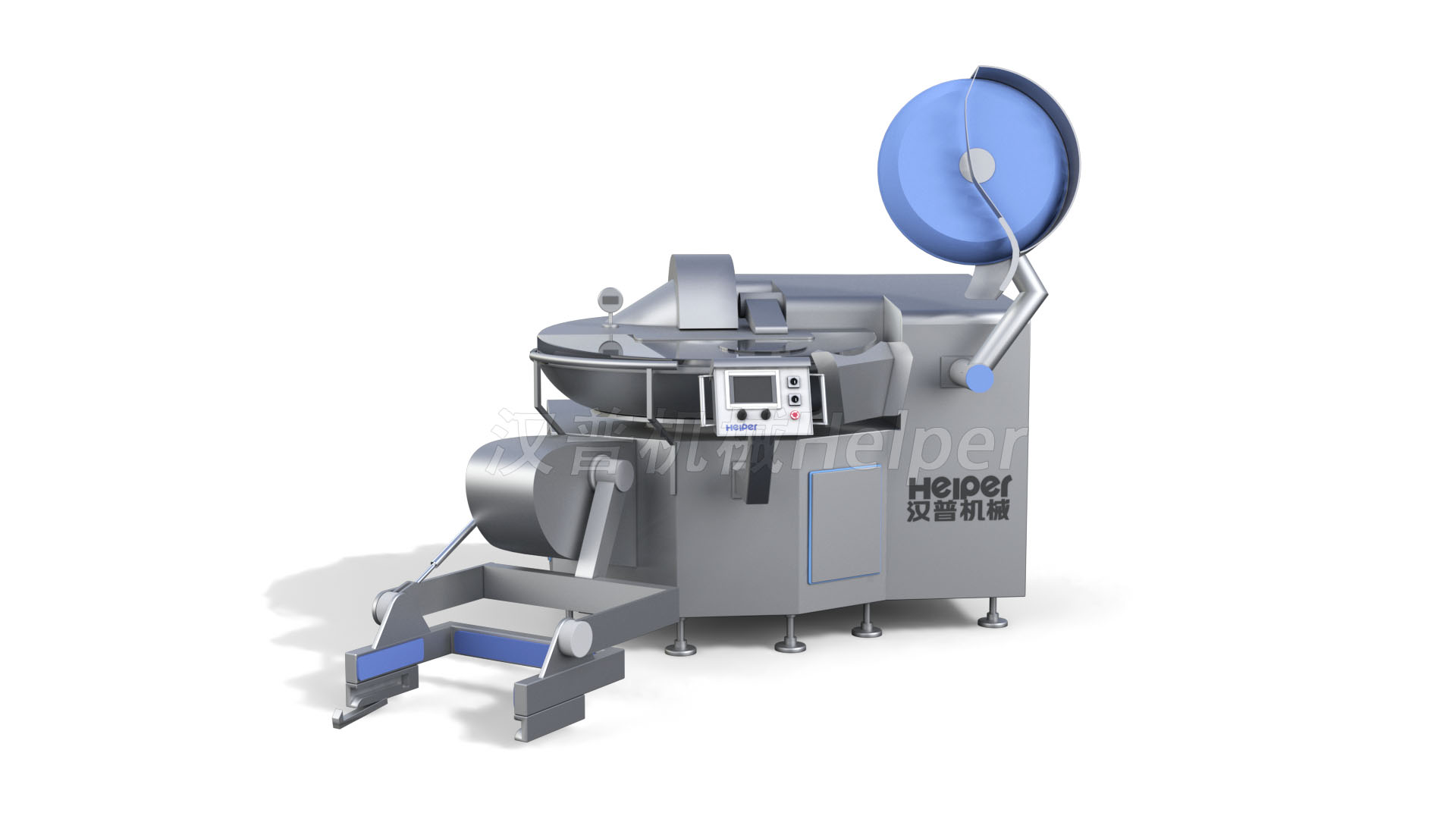

Industrial Meat Bowl Cutter has high quality stainless steel construction with variable speed control of the cutting and mixing rotations. The high-speed rotation of bowl cutter's blade shortens the processing time and limits the temperature rise, which realizes full protein abstraction, perfect elasticity, sufficient emulsification and high productivities. Mechanical loading for 200 litre buggies and automatic discharging devices made it easy for dealing with raw materials at production. The best cutting system and unique mechanical structure will help clients to create value and save time.
1. HACCP standard 304/316 stainless steel
2. Auto protection design to make sure safe operation
3. Distance is less than 2mm between the cutting knife and cutting pot.
4. Excellent cutting result due to the best combination of knife and pot speed
5. Noise protecting cover noise preventing cover
6. Temperature monitoring and little meat temperature changing, benefit to preserve freshness
7. Automatic output device and automatic lifting device
8. Double seals structure to protect the axis of cutter being rusted and the risk of contaminant in the sausage meat will be avoided.
9. Key parts produced by advanced machine processing center, ensure the precision of process.
10. Waterproof and ergonomic design to reach IP65 security.
11. Hygienic cleaning in short time due to smooth surfaces.
12. Vacuum and non-vacuum option for customer
13. Also suitable for fish,fruit,vegetable,and nut processing.
| Model | Productivity(kg) | Volume(L) | Power(kw) | Knife quntity(piece) |
| ZB-200 | 170-180 | 200 | 54 | 6 |
| Knife speed(r/min) | Bowl speed | Unloader speed(rpm) | Dimension(mm) |
| 200/1850/3700 | 7.5/10/15 | 82 | 2950×2400×1950 |
Bowl cutter series
| Model | Capacity | Volume(L) | Power (Kw) | Knife | Bowl Speed(RPM) | Knife(RPM) | Weight (mm) | Dimension(mm) |
| ZB-80 | 70-75 | 80 | 11 | 6 | 7/11 | 750/1500/3000 | 1300 | 1900x1500x1500 |
| ZB-125I | 100-110 | 125 | 12 | 6 | 7/11 | 750/1500/3000 | 1800 | 2100x1420x1600 |
| ZB-125II100-110 | 100-110 | 125 | 33.2 | 6 | 7/11 | 300/1500/3000/4500 | 2000 | 2100x1420x1600 |
| ZB-200 | 170-180 | 200 | 60 | 6 | 7.5/10/15 | 200/1850/3700/4500 | 3500 | 2950x2400x1950 |
| ZB-200 Vacuum | 170-180 | 200 | 65 | 6 | 7.5/10/15 | 300/1800/3600/4500 | 4800 | 3100x2420x2300 |
| ZB-330 | 270-310 | 330 | 82 | 6 | 6/12 | 300/1800/3600/4500 | 5000 | 3855x2900x2100 |
