Model No.: JB-400
Brand: Helper
Origin: China
Certification: ISO9001-2008, CE
Applicable Industry: Hotels, Food &Amp; Beverage Factory, Food Shop
Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service
Status: New
Degree Of Automation: Automatic
Place Of Origin: China
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Core Components: Motor, Bearing, Pump, Gearbox
Core Selling Point: Competitive Price
Voltage: 380v
Customized: Customized
Material: Stanless Steel
Type: Meat Mixing
Application: Meat Processing And Sausage Making
| Selling Units | : | Set/Sets |
| Package Type | : | Seaworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

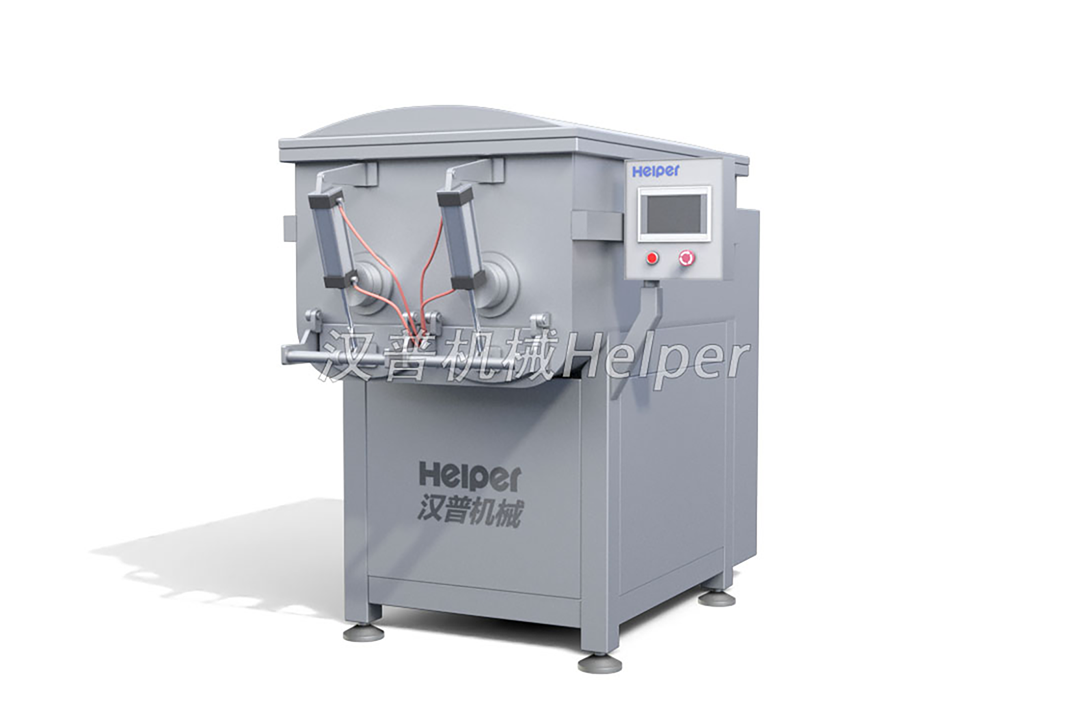

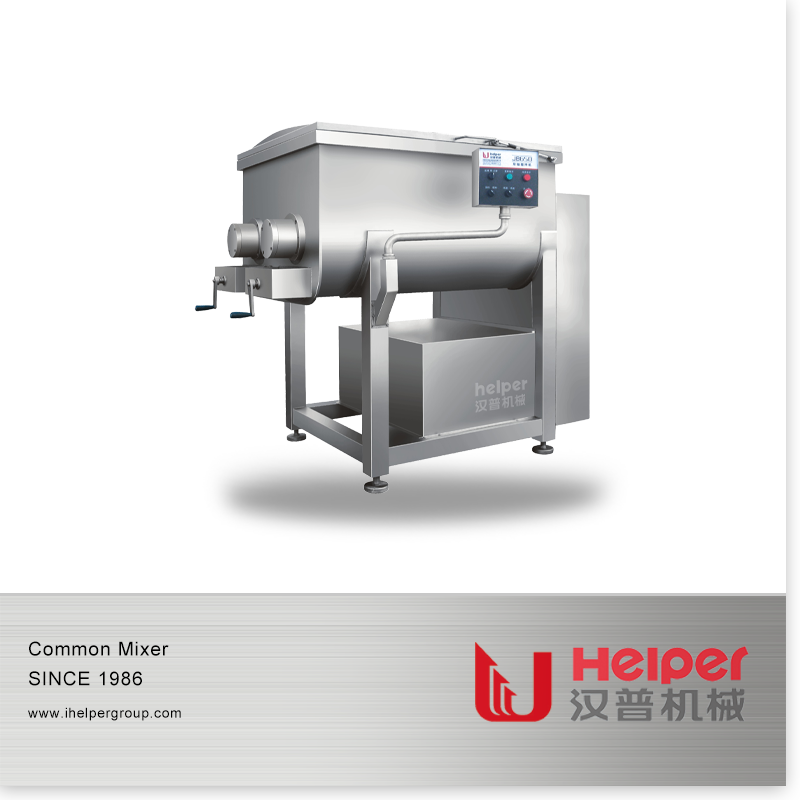

Stainless Steel Food Mixer---widely used in dumpling making and sausage making plants
The Food Mixer is made of 340 stainless steel, and the mixers are features as reliability, durability, air tightness and convenience to clean. The cycloidal gear structure makes the transmission stable, reliable and low noise. Two horizontal, parallel mixing shafts with paddles or spirals guarantee an equal mixing of the components. The Mixers correspond to international safety standards (CE). The backward open structure makes it safe for operation.
Features and characters
--- Excellent and Mature vacuum sealing technology that applied in the whole mixing machine series.--- The cycloidal gear of this machine makes transmission stable reliable, and low noise.
--- Single and double shaft structure are available for different capacities.
--- Auto cover opening and closing and easy material discharging design.
--- Positive and inversive rotation control.
--- discharge in standard trolleys of 200 litres or special trolleys
--- Work well with automatic lifting device to form a production flow.
--- Cooling system is an optional for special application.
--- Stainless steel structure and excellent surface treatment make for easy cleaning.
--- Stainless steel structure and excellent surface treatment make for easy cleaning.
Performance Data
| Volume(L) | Compressed Air(Mpa) | Mix Speed(RPM) | Power(KW) | Dimension(mm) |
| 400 | 0.5 | 100,50 | 2.3*2 | 1400*900*1500 |
Mixer Series
| Model | Capacity of Mixing Tank(L) | Mixing Speed (RPM) | Power(kw) | Weight(KG) | Dimension(mm) |
| JB-60 | 60 | 75/37.5 | 0.75 | 180 | 1060*500*1220 |
| JB-400 | 400 | 84/42 | 3.3*2 | 400 | 1400*900*1500 |
| JB-650 | 650 | 84/42 | 4.5*2 | 700 | 1760*1130*1500 |
| JB-800 | 800 | 84/42 | 4.5*2 | 850 | 2100*1380*1860 |
| JB-1200 | 1200 | 84/42 | 7.5*2 | 1100 | 2160*1460*2000 |
| JB-2000 | 2000 | 16-40 Frequency Inverter | 18 | 3000 | 2270*1930*2150 |
| jb-2500 | 2500 | 20-40 Frequency Inverter | 25 | 3300 | 2340*2150*2230 |
Video and Film to show the working process of a food mixer
Factory Overview---To understand our production capacity and company strength
 | |
 |
