Model No.: ZB-40
Brand: Helper
Origin: China
Certification: ISO 9001-2008, CE
Applicable Industry: Hotels, Food &Amp; Beverage Factory, Farms, Food Shop, Food &Amp; Beverage Shops
Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts
Status: New
Degree Of Automation: Automatic
Place Of Origin: China
Warranty Period: 1 Year
Mechanical Test Report: Provided
Video Factory Inspection: Provided
Core Component Warranty Period: 1 Year
Core Components: Motor, Pump
Voltage: 380V
Type: Meat And Sausage Making
| Selling Units | : | Set/Sets |
| Package Type | : | Seaworthy wooden case |
| Download | : |
|
The file is encrypted. Please fill in the following information to continue accessing it

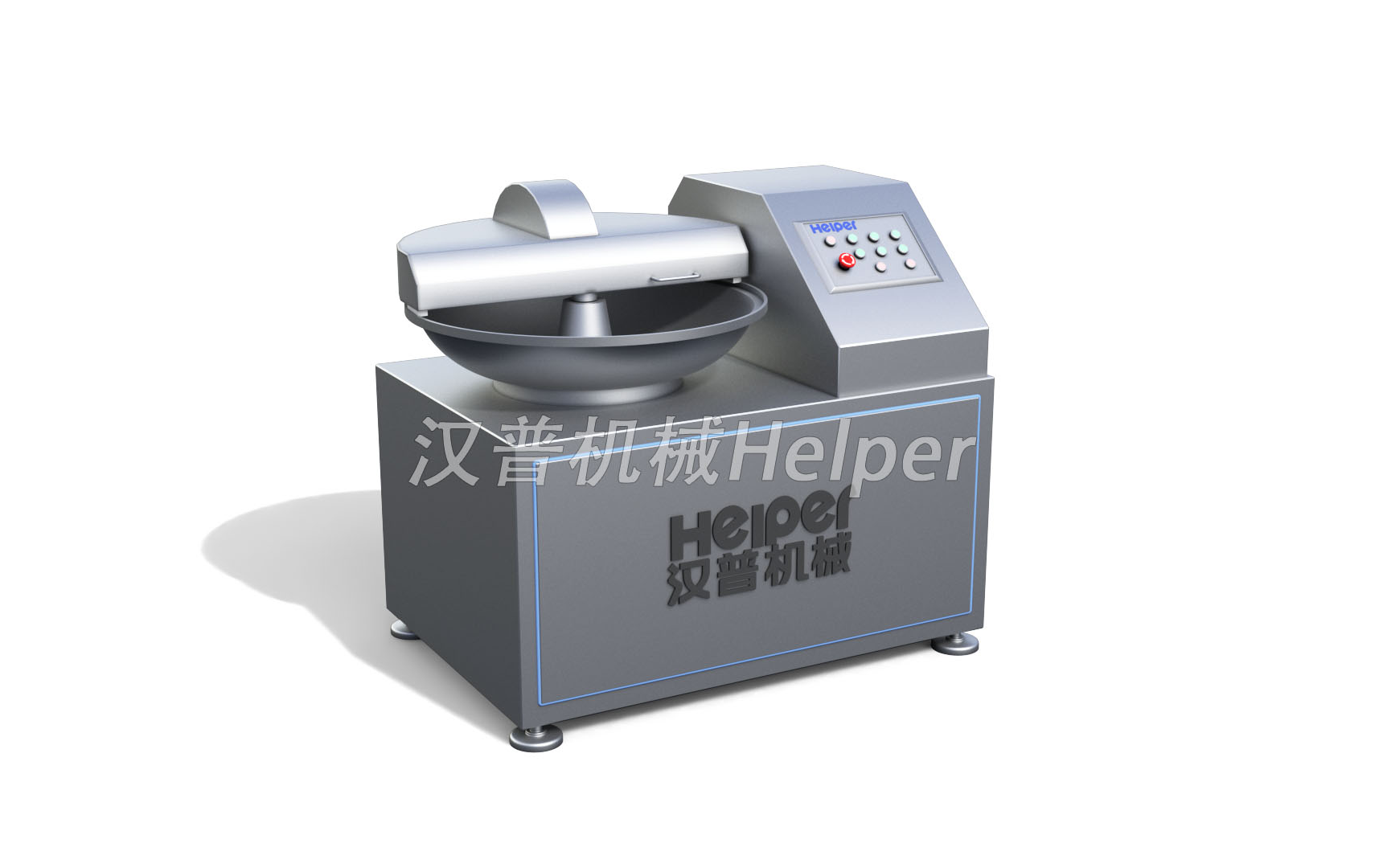

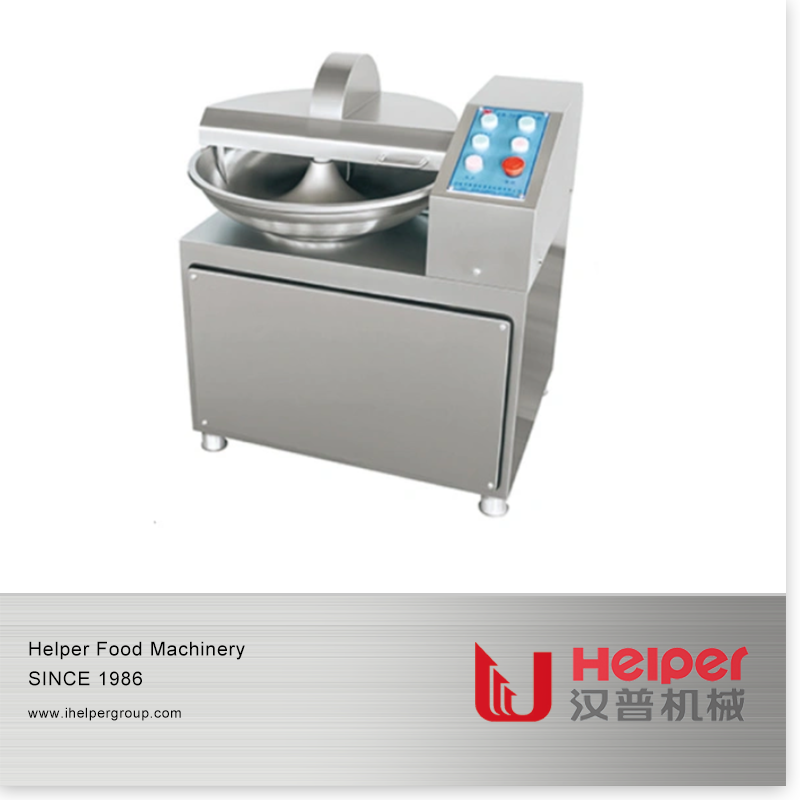

Sausage Making Machine Meat Bowl Cutter 40 L
The Meat Bowl Cutter produced by our company has the perfect combination of the cutter speed, bowl speed and the distance between the cutters and
the revolving pan. With little temperature rise and short cutting time, the machine can produce meat paste with the emulsification, elasticity and
smoothness to a maximum extent.
Features and Advantages Of Meat Bowl Cutter
1. HACCP standard 304/316 stainless steel
2. Auto protection design to make sure safe operation
3. Distance is less than 2mm between the cutting knife and cutting pot.
4. Excellent cutting result due to the best combination of knife and pot speed
5. Noise protecting cover noise preventing cover
6. Temperature monitoring and little meat temperature changing, benefit to preserve freshness
7. Automatic output device and automatic lifting device
8. Double seals structure to protect the axis of cutter being rusted and the risk of contaminant in the sausage meat will be avoided.
9. Key parts produced by advanced machine processing center, ensure the precision of process.
10. Waterproof and ergonomic design to reach IP65 security.
11. Hygienic cleaning in short time due to smooth surfaces.
12. Vacuum and non-vacuum option for customer
13. Also suitable for fish,fruit,vegetable,and nut processing.
Major Parameters Of Meat Bowl Cutter
| Model | Productivity(kg) | Volume(L) | Power | Knife quantity | Bowl speed(r/min) | Knife(r/min) | weight | Dimension |
| ZB-40 | 25 | 40 | 6.25 | 3 | 12 | 1800/3600 | 480 |
1245×810×1094
|
Introduction Of Meat Bowl Cutter
| Model | Productivity(kg) | Volume(L) | Power | Knife quantity | Bowl speed(r/min) | Knife(r/min) | weight | Dimension |
| ZB-80 | 70-75 | 80 | 11 | 6 | 7/11 | 750/1500/3000 | 1300 | 1900x1500x1500 |
| ZB-125 I | 100-110 | 125 | 12 | 6 | 7/11 | 750/1500/3000 | 1800 | 2100x1420x1600 |
| ZB-125 II | 100-110 | 125 | 33.2 | 6 | 7/11 | 300/1500/3000/4500 | 2000 | 2100x1420x1600 |
| ZB-200 | 170-180 | 200 | 60 | 6 | 7.5/10/15 | 200/1850/3700/4500 | 3500 | 2950x2400x1950 |
| ZB-200 Vacuum | 170-180 | 200 | 65 | 6 | 7.5/10/15 | 300/1800/3600/4500 | 4800 | 3100x2420x2300 |
| ZB-330 | 270-310 | 330 | 82 | 6 | 6/12 | 300/1800/3600/4500 | 5000 | 3855x2900x2100 |
Operation video of Industrial Bowl Cutter

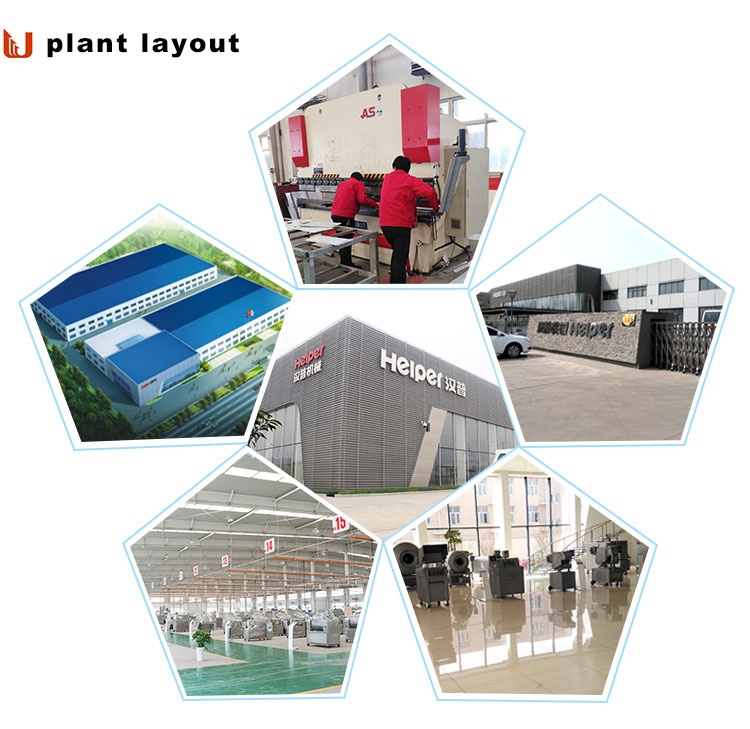

Factory Overview---To understand our production capacity and company strength
 | |
