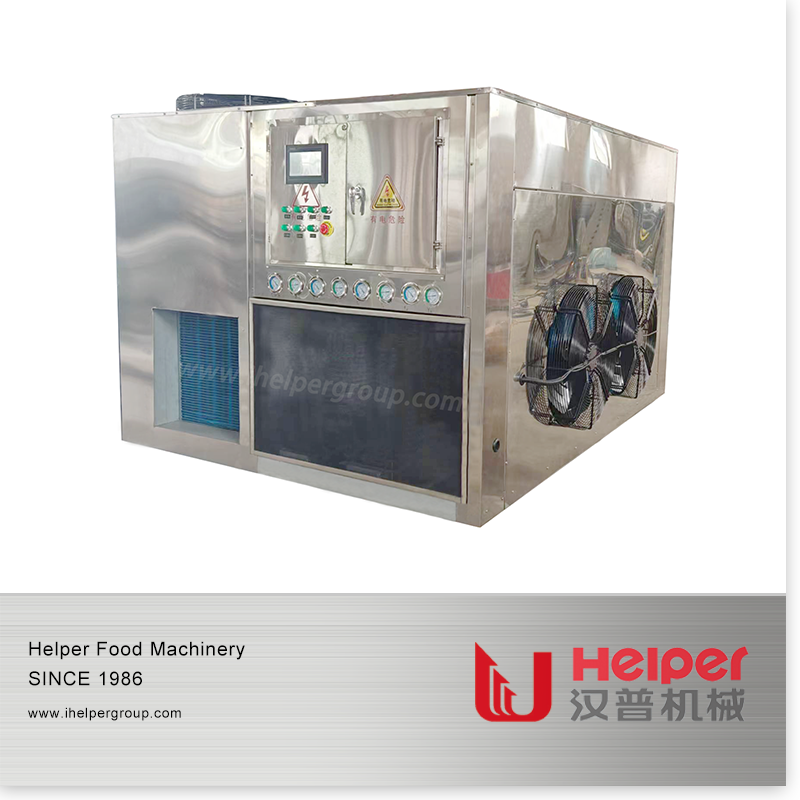

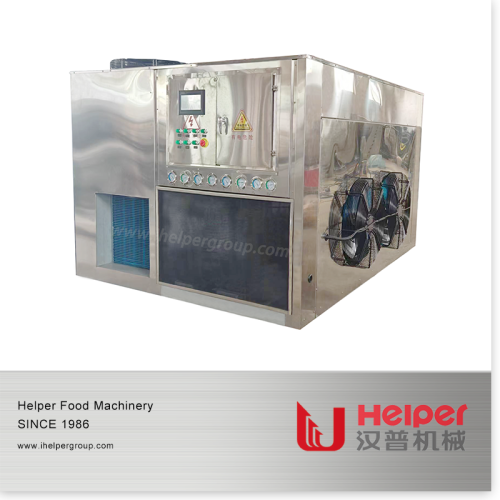

Industrial Drying House and Dehydrator

Get Latest Price

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CFR,CIF
Min. Order:	1 Set/Sets
Transportation:	Ocean,Land
Port:	T,I,A

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Brand: Helper

Origin: China

Place Of Origin: China

Status: New

Warranty Period: 1 Year

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Motor

Packaging & Delivery

Selling Units	:	Set/Sets
Package Type	:	WOODEN CASE

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Working Principle Of Industrial Dehydrator

Heat pump dryers operate on the reverse Carnot principle, absorbing heat from the air and transferring it into the drying chamber to raise the temperature, thereby achieving material drying when combined with relevant equipment. The heat pump dryer consists of a compressor, heat exchanger (indoor unit), throttle valve, heat absorber (outdoor unit), and compressor, which together form a closed-loop system. The refrigerant circulates within the system under the action of the compressor. It undergoes a process of pressurization and temperature increase (reaching temperatures as high as 100°C) in the compressor, transforming into a gaseous state. Upon entering the indoor unit, it releases high-temperature heat to warm the air inside the drying chamber, while simultaneously cooling down and transitioning into a liquid state. When the refrigerant flows to the outdoor unit, the liquid rapidly absorbs heat and evaporates back into a gaseous state, with its temperature dropping to between -20°C and -30°C. At this point, the heat sources surrounding the heat absorber continuously transfer heat to the refrigerant. Through this continuous cycle, the refrigerant effectively moves heat from the external heat sources into the drying chamber, raising the temperature of the air inside.

Unit Features Of Dehydrating Equipment：

① Energy-saving ② Low-temperature operation

③ Safe ④ Environmentally friendly

Core Advantages Of Commercial Food Dehydrators：

Energy-efficient and environmentally friendly, core technology, ultra-safe, time and labor-saving, flexible control, high utilization rate, durable, rational structure, clean and hygienic.

Application Fields Of Best Industrial Dehydrators ：

Drying of animal products such as meat; drying of aquatic and marine products including algae, seaweed, fish, shrimp, scallops, and sea cucumbers; drying of agricultural products such as grains, fruits, vegetables, tea, fungus, ginseng, and mushrooms.

Main parameters of Industrial jerky dehydrator:

Heating Equipment	Supply Fan	Drying Room	Circulating Fan	Control System	Auxiliary Heating	Dehumidification System	Air Duct Baffle	Fan Rack	Drying Room Door
Heating 84 kW/unit, Power 24 kW/unit	0.45 kW/unit	10 cm thick insulation board	2800 rpm	Intelligent Control	Separate Controls	Dimensions 600 x 600 mm	6000 x 7780 mm	900 x 7780 mm	2400 x 2500 mm
