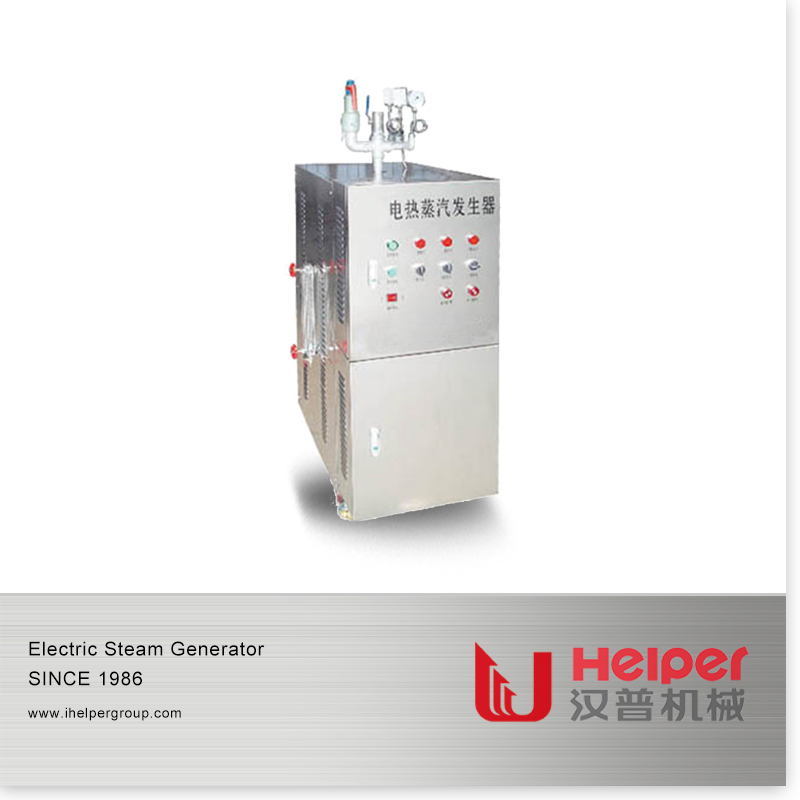

Electric Steam Generator

Electric Steam Generator

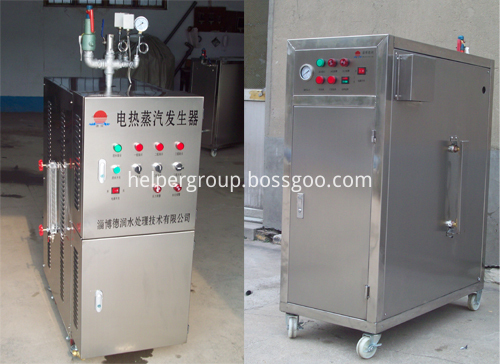

LCR steam generator is a new developed product with the electric heating system, PLC and other automatic monitoring parts to realize the automatic running of the equipment. To produce high pressure steam, Water in a closed container is heated by high efficiency stainless steel heating tubes.

Technical parameters

Model: LDR0.1-0.7
Capacity: 100kg/hour
Power: 72kw
Electric requirement: 380V 50Hz three phase
Maximum Steam pressure: 0.8Mpa
Safety valve setting: 0.7Mpa≤ steam pressure ≤0.77Mpa
Temperature: 169°C
Water requirement: pure water
Weight: 240kg

Advantages and characters

1. Automatic water feeding device:
During the running process, the water pump will work automatically to ensure the safety water level in the tank, thus to produce steam continuously.
2. Triple pressure protection system
A. Inner pressure inspection system
B. safety air pressure controller
C. safety valve
3. Water lacking protecting system
In case of accident occurrences, the water level is under the safety level, power supply will be shut off to protect the heating system.
4. Multi chamber structure
Steam output will be enhanced by two chambers device, by which cold air will keep out of the chamber to realize high quality steam generating.
5. Shift heating tubes
To control the steam output amount, workers just need to shut down a group of heating tubes to save electric power cost.
