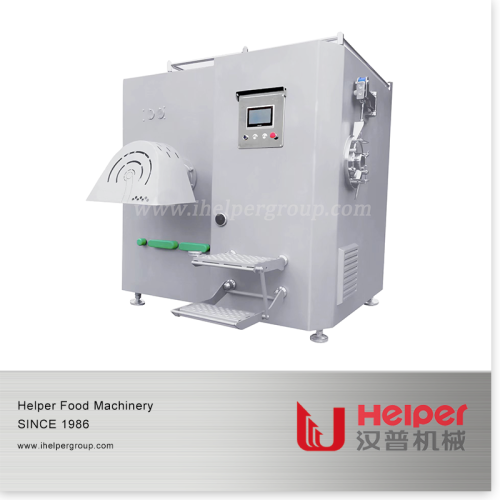

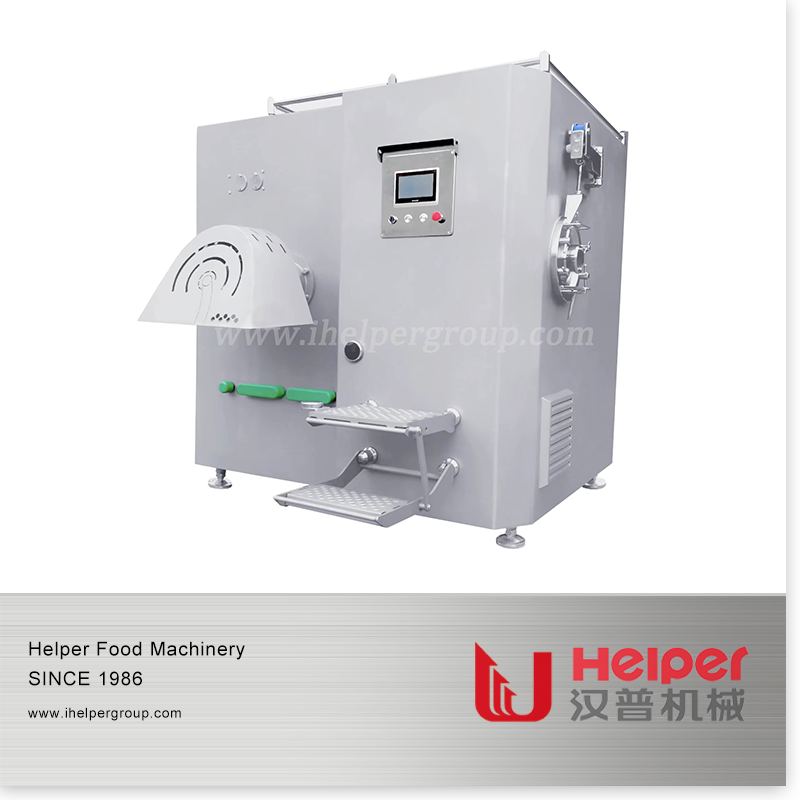

Factory Meat Grinder

Get Latest Price

Payment Type:	L/C,T/T,D/P
Incoterm:	FOB,CIF,EXW
Min. Order:	1 Set/Sets
Transportation:	Ocean
Port:	TIANJIN

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: JR-200

Brand: Helper

Origin: China

Packaging & Delivery

Selling Units	:	Set/Sets
Package Type	:	WOODEN CASE

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

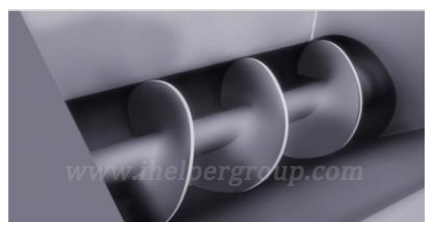

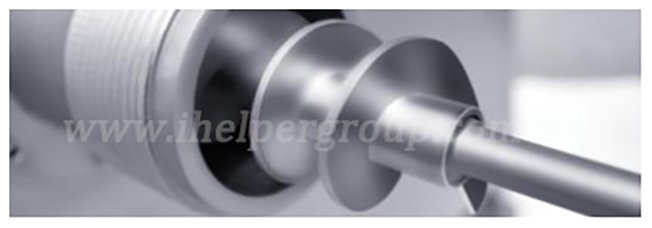

Auger features of factory Meat Grinder:

1. This factory meat grinder features a feed auger and a discharge auger,e, each equipped with dual frequency conversion control, allowing for independent adjustment of the speed of each cage. Different speed ratios can be adjusted based on the type of raw meat, the softness and hardness of the fibers, and the coarseness of the fibers, ensuring uniform meat particles for optimal results.

2. The optimized pitch of the discharge cage ensures smooth meat passage and reduces continuous squeezing of the meat by the cage, eliminating oil release and ensuring uniform meat particle size.

3. The factory meat grinder features an independent disassembly mechanism for easy cleaning and maintenance.

Advantages of factory meat grinder :

1. The control panel utilizes waterproof stainless steel buttons for seamless cleaning and a 360° washable design.

2. The factory meat grinder features a brushed finish and European-style double-layer non-slip pedals.

3. Safety detection devices are installed throughout the machine, with user-friendly safety features. Whenever a safety hazard is detected, the machine automatically stops. The PLC automatically detects the safety fault and resumes operation only after the operator resolves the issue.

4. Dual-frequency design reduces starting current, minimizes impact on the power grid, and extends motor life.

5. All control circuits utilize a safe DC24 voltage.

6. The power inlet protective connector utilizes a 304 ultra-waterproof cable gland.

7. All material contact areas are constructed of SUS304 material that meets food safety standards, significantly reducing bacterial growth.

8. The discharge port of our factory meat grinder is protected by an independent stainless steel shield to ensure safety during operation.

Main parameters of factory meat grinder：

Model	Power（kw）	Power Supply(v/hz)	Production Capacity (kg)	Material Temperature (°C)	Grate Size (mm)	Material Size (mmmmmm)	Speed (rpm)	Weight (kg)	Dimensions (mm)
JR-200	40	380/50	2t-8t	10℃~-5℃	Ø4~Medium 30	200200100	0~180 (Dual Frequency Adjustable)	1500	170018601750
