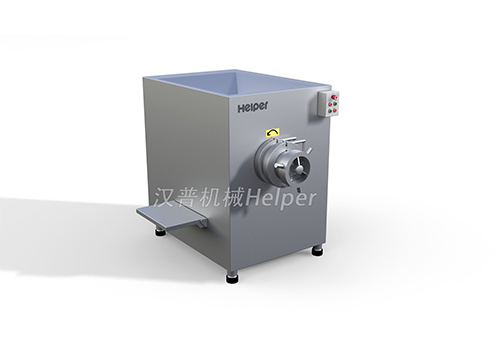

Industrial Frozen Meat Grinder

Industrial Frozen Meat Grinder

  Machine

Recommended Points

• For large meat processing factory
• to grind and mince frozen meat directly without Pre-thawing
• Industrial meat grinder with different diameter hole plates assembled
• Very little temperature increasing during working process
• For deep frozen meat, chicken bones, DMD meat blocks etc
• Very strong power to make sure the output of production of different production condictions
• Integrated with conveyors to facilitate the production and save labor cost

Overview

We have more than 30 years of experience in producing industrial meat

grinders for both fresh meat and frozen meat and even frozen blocks

, and the capacities of frozen meat grinders with hole plates of 120, 130,

160, 250, 300 mm are from  500-5000 kg per hour.

Industrial meat grinders are widely used in various food processing

industries,such as sausage factories,catering companies, canned meat

factories, quick-frozen foodcompanies, pet food factories, chicken

processing plants, snack factories, etc.

Features

1. Full-stainless steel

We assure our ginders are fully made of stainless steel 304 to meet the food grade requirememnts of most food factories.

2. Stainless Steel Casting and Precision CNC Parts

The grinding worm and some other important parts are all made by stainless steel casting technilogy and the pre-cutters and knives and hole plates are all precision machined parts to achieve exclent cutting result.

3. Low temperature Increasing

We are always try to balance the high output of grinding capacity as well as the little temperature increasing during the working process to keep meat at low temperature at grinding step.

4. Safety measures for all meat grinder models

Some necessary lid and covers to any moving parts and some sensors to detect the opening of all necessary positions to make sure the safety of operators.

 5. Easy disassembling and washing

All models of industrial meat grinders can be easily disassembled from the auger to the locking nut, so that every part of the equipment that comes into contact with food can be well cleaned. .

PERFORMANCE DATA

• Production Capacity : 1000-5000kg per hour
• Rotation Speed of the worm : 47/150 /170/260rpm
• Power: 7.5/15.8/37/55kw , 380V/220V Or Customized according to different voltages.
• Diameter of the hole plates:120mm,140mm,160mm,250mm,300mm.
• Applicable Products: red meat and fats, meat with bones, mushroom and pepper , etc.
• Warranty Period: One year
• Quality Certification: CE,

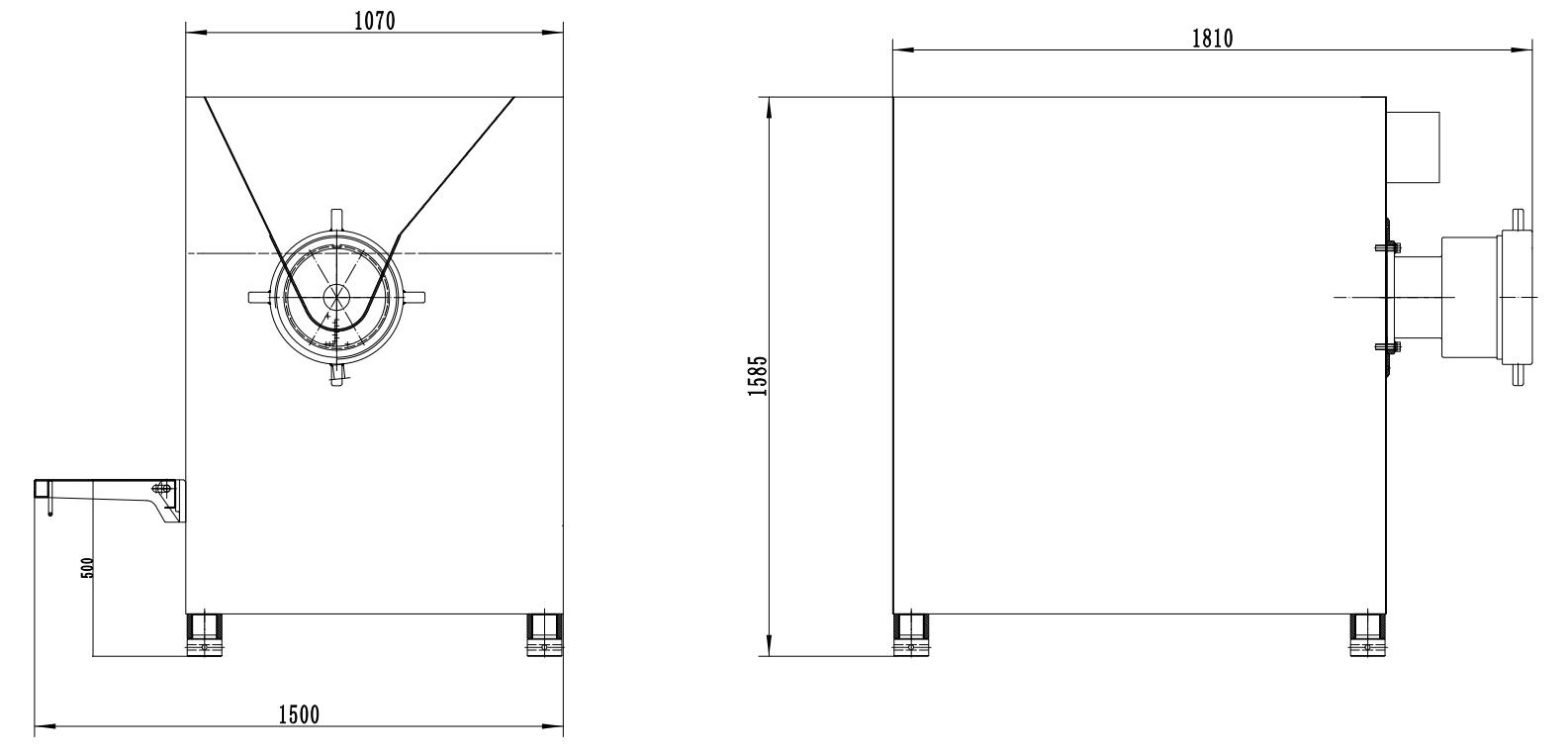

LAYOUT DRAWINGS

FAQ

Why should I order one industrial frozen meat grinder machine?

--- It is a necessary equipment for making different meat products, such as sausage products, meat patty products, meatballs, frozen foods, snack foods, etc

How does a industrial frozen meat ginder machine works?

--- To pour the meat completely from a dumper / bins, and then the worm of grinder lead the meat into cutting system, and finally it comes out very nice minced meat.

How can we produce with different sizes of meat particals with one industrial frozen meat grinder?

--- We can replace the holes plates of the grinder to achieve different minced sizes of meat, it has a wide range of options with different diameter of holes from 3mm to 26mm .
