Model No.: ZKHM-600
Brand: Helper
Origin: China
Certification: ISO9001-2008,CE
Types Of Baking And Pastry Tools: Pastry Blenders
Certification: Ce / Eu
Type: Mixer
Voltage: 380v
Customized: Customized
Automaticity: High Automation Level
Application: Biscuits, Hamburgers, Bread, Noodles, Dumpling
Material: Stainless Steel
| Selling Units | : | Set/Sets |
| Package Type | : | Seaoworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

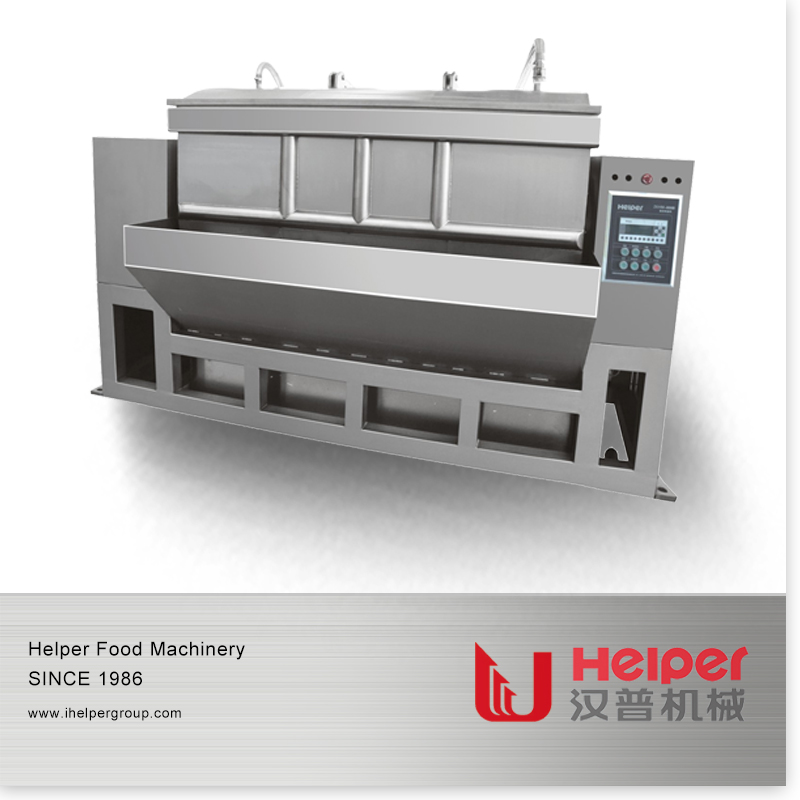

Industrial dough kneading solution---Horizontal Vacuum Dough Kneading Machine
A 600L or larger vacuum dough kneading machine is designed for industrial mass production. 200kg or more dry flour powder can be mixed well with water and oil and other additives in 6 minutes. It help the producer to make large capacity dough in shortest time, save production time, as well as ensure the best mixing status at the same time. Automatic feeding of flour and water supply system are available for customer options. Many patented technology makes this machine the most advanced one among the large capacity food mixers in pasta and bakery industry market.
Features and Advantages
--- Made of super stainless steel, rational structure of frame and mixing tank. Durable for using, stable running.
--- Automatic model: PLC control, working time and vacuum degree can be set according to the process craft requests.
--- Processing under the vacuum negative pressure, makes the protein fully absorbing moisture in shortest time, forms the best gluten network and smooth dough appearing, and right status tenderness of dough. The finished dough appears slightly yellow, excellent curing status.
--- High ratio of water absorbing, greatly reduces production cost.
--- Adopting unique way of mixing, combined with mixing, kneading, fermenting functions, and save time to leave the dough for certain time, can be used directly once dough comes out.
--- Optional of automatic water and powder supply devices, to improve production efficiency further, labor work saving. (optional)
--- Unique design for sealing makes it safe, reliable, long service life and easy disassembling.
Performance data
|
model | power(kw) | vacuum degree (Mpa) | Mixing speed | powder processing(kg) | Net Weight(kg) | dimension(mm) |
| ZKHMV-600 | 34.8 | -0.08 | Paddle shaft 48,Rod type shaft 88/44 | 200 | 2500 | 2050*1200*1800 |
Vacuum Dough Mixer Series
| model | power(kw) | vacuum degree (Mpa) | powder processing(kg) | Mixing speed | Net Weight(kg) | dimension(mm) |
| ZKHMV-40 | 5 | -0.08 | 7.5~10 | Frequency control | 300 | 1000*600*1080 |
| ZKHMV-75 | 6.6 | -0.08 | 25 | Paddle shaft 39,Rod type shaft 88/44 | 500 | 1210*660*1165 |
| ZKHMV-150 | 12.8 | -0.08 | 50 | Paddle shaft 48,Rod type shaft 88/44 | 1000 | 1340*920*1375 |
| ZKHMV-300 | 18.5 | -0.08 | 100 | Paddle shaft 48,Rod type shaft 88/44 | 1600 | 1800*1200*1600 |
| ZKHMV-600 | 34.8 | -0.08 | 200 | Paddle shaft 48,Rod type shaft 88/44 | 2500 | 2050*1200*1800 |
Vacuum Dough Kneading Machine Film
About Helper Machinery Group

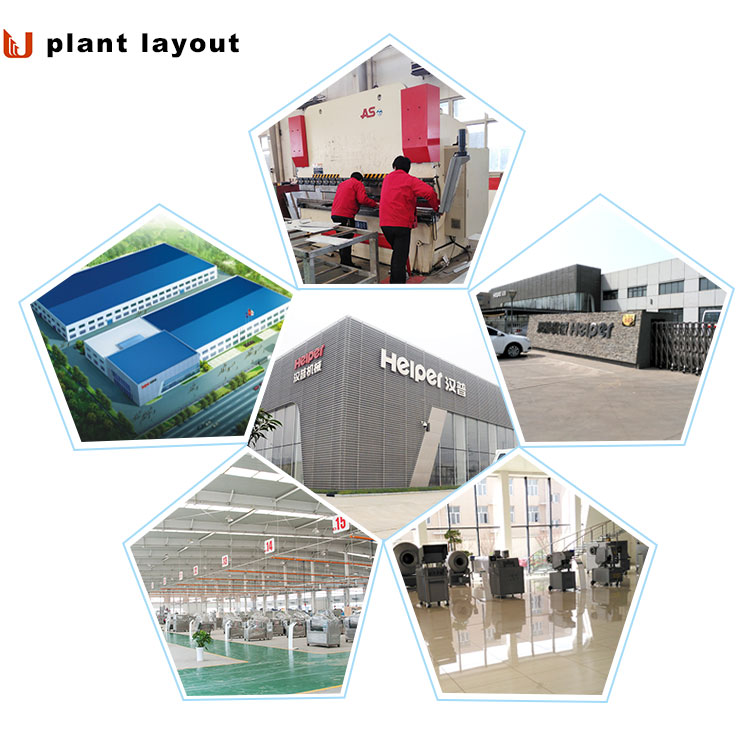

Factory Overview---To understand our production capacity and company strength
 | |
