Model No.: ZKHM-75
Brand: Helper
Origin: China
Certification: ISO9001-2008,CE
Voltage: 380V
Customized: Customized
Material: Stainless Steel
Automaticity: High Automation Level
Application: Biscuits, Hamburgers, Bread, Noodles, Dumpling
TYPE: Mixer
| Selling Units | : | Set/Sets |
| Package Type | : | Seaoworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

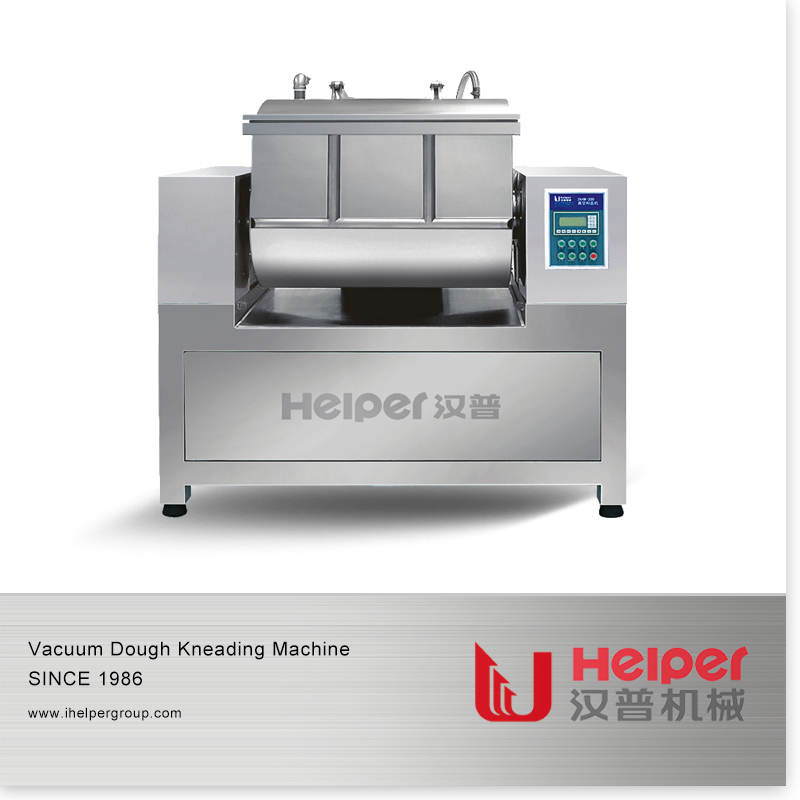

Dough Kneading Machine
Helper vacuum dough kneading machine is developed by our research group independently, as the most advanced dough kneader/mixer , it is suitable for all kinds of pasta products processing, you can achieve different dough kneading effects by the different types of stirring shafts up to the features of wheat powder.
Features and Advantages
--- Made of super stainless steel, rational structure of frame and mixing tank. Durable for using, stable running.
--- Automatic model: PLC control, working time and vacuum degree can be set according to the process craft requests.
--- Processing under the vacuum negative pressure, makes the protein fully absorbing moisture in shortest time, forms the best gluten network and smooth dough appearing, and right status tenderness of dough. The finished dough appears slightly yellow, excellent curing status.
--- High ratio of water absorbing, greatly reduces production cost.
--- Adopting unique way of mixing, combined with mixing, kneading, fermenting functions, and save time to leave the dough for certain time, can be used directly once dough comes out.
--- Optional of automatic water and powder supply devices, to improve production efficiency further, labor work saving. (optional)
--- Unique design for sealing makes it safe, reliable, long service life and easy disassembling.
| model | power(kw) | vacuum degree (Mpa) | powder processing(kg) | Mixing speed | Net Weight(kg) | dimension(mm) |
| ZKHMV-75 | 6.6 | -0.08 | 40 | Paddle shaft 39,Rod type shaft 66/33 | 500 | 1210*660*1165 |
Vacuum Dough Mixer Series
| model | power(kw) | vacuum degree (Mpa) | powder processing(kg) | Mixing speed | Net Weight(kg) | dimension(mm) |
| ZKHMV-40 | 5 | -0.08 | 7.5~10 | Frequency control | 300 | 1000*600*1080 |
| ZKHMV-75 | 6.6 | -0.08 | 40 | Paddle shaft 39,Rod type shaft 66/33 | 500 | 1210*660*1165 |
| ZKHMV-150 | 12.8 | -0.08 | 80 | Paddle shaft 39,Rod type shaft 66/33 | 1000 | 1340*920*1375 |
| ZKHMV-300 | 18.5 | -0.08 | 160 | Paddle shaft 39,Rod type shaft 66/33 | 1600 | 1800*1200*1600 |
| ZKHMV-600 | 34.8 | -0.08 | 300 | Paddle shaft 39,Rod type shaft 66/33 | 2500 | 2050*1200*1800 |
