Model No.: DG-Q02
Brand: Helper
Origin: China
Certification: ISO9001-2008
Type: Mix Filling Machines
Voltage: 220V
Customized: Customized
Material: Stainless Steel
Automaticity: High Automation Level
| Selling Units | : | Set/Sets |
| Package Type | : | Seaoworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

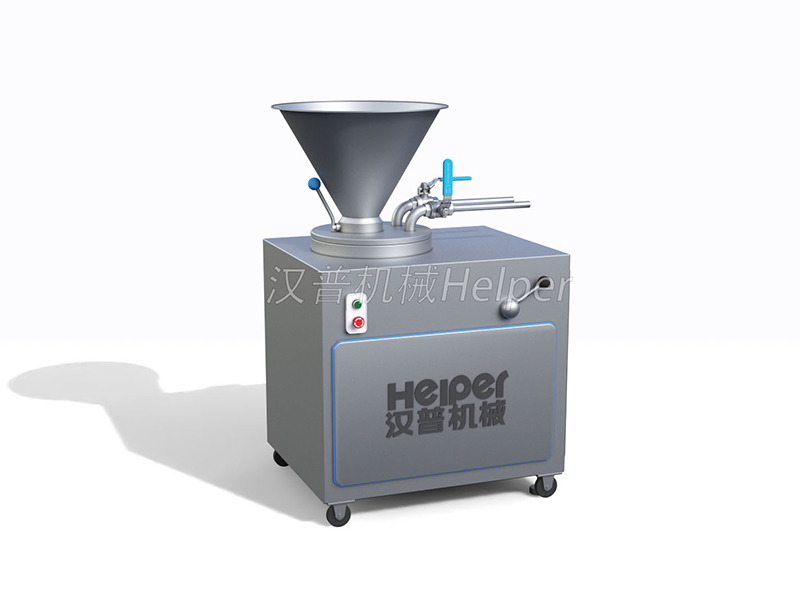

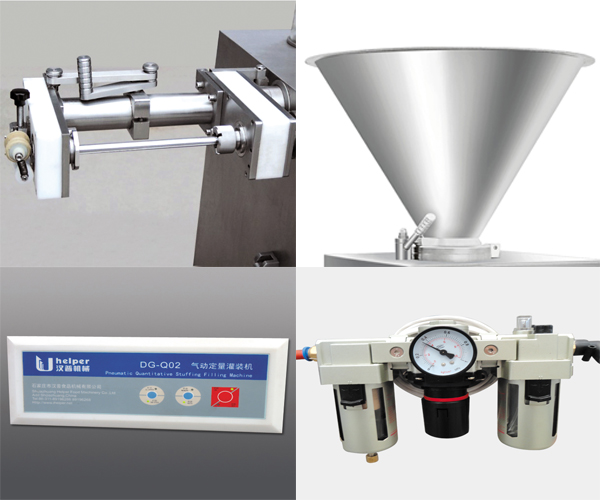

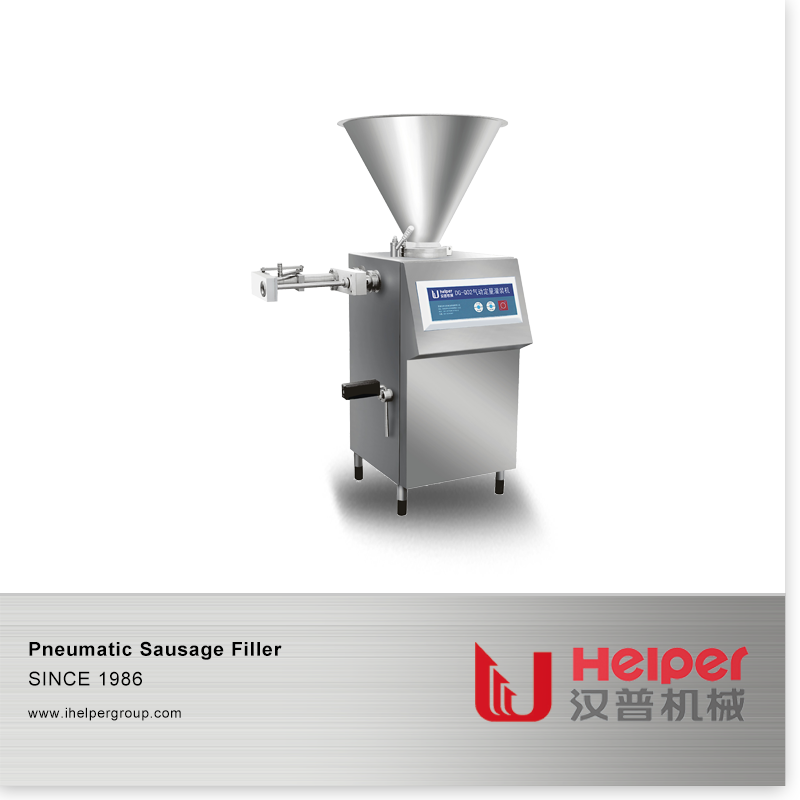

Pneumatic Sausage Filler
This pneumatic filler have neat strcture with small volume and low price. It is designed specially for medium and small-scale producers. The sausage filler, driven by pneumatic quantitative pump, can be equipped with automatic sausage twister. Connecting to various double clipping machines, it will help producers to form an automatic manufacturing line. It is used in a wide range of applications, not only sausage and meat products, but also some new trend foods, such as quick-frozen food, convenience food etc.
Features and characters
---Filling out of all types of pastes or minced meat into any casing and container with high output and high quality;
---The machine is designed with adoption of CAD with tidy appearance, small and exquisite.
---Main body stainless steel structure meets all hygienic requirements;
--- Compatible with different clippers of any manufacturer;
--- Automatic twisting device is applicable for various casing, natural casing and collagen casing etc.
---Portioning tolerance is within±3g.
---Operation language is customized according to requirements.
---Leg touch switch make it easy for the operator.
Main Technical Parameters
Hopper Volume: 80L
Air Pressure:0.5Mpa
Power:220 V 50 VA (can be changed as customer's request)
Working speed: 30- 50 Times/min
Portioning range: 20- 480g ; 50-1000 g
Dimension(L×W×H): 700×800×1600 mm
