Model No.: GN-1200II
Brand: Helper
Origin: China
Certification: ISO9001
Automaticity: High Automation Level
Machines Connected: Filler,linker,hanger
Casing Available: Natural Casing,collagen Casing And Cellulose Casin
Application: Hot Dog Sausage,mini Sausage,twisting Sausage
| Selling Units | : | Set/Sets |
| Package Type | : | Seaoworthy wooden case |
The file is encrypted. Please fill in the following information to continue accessing it

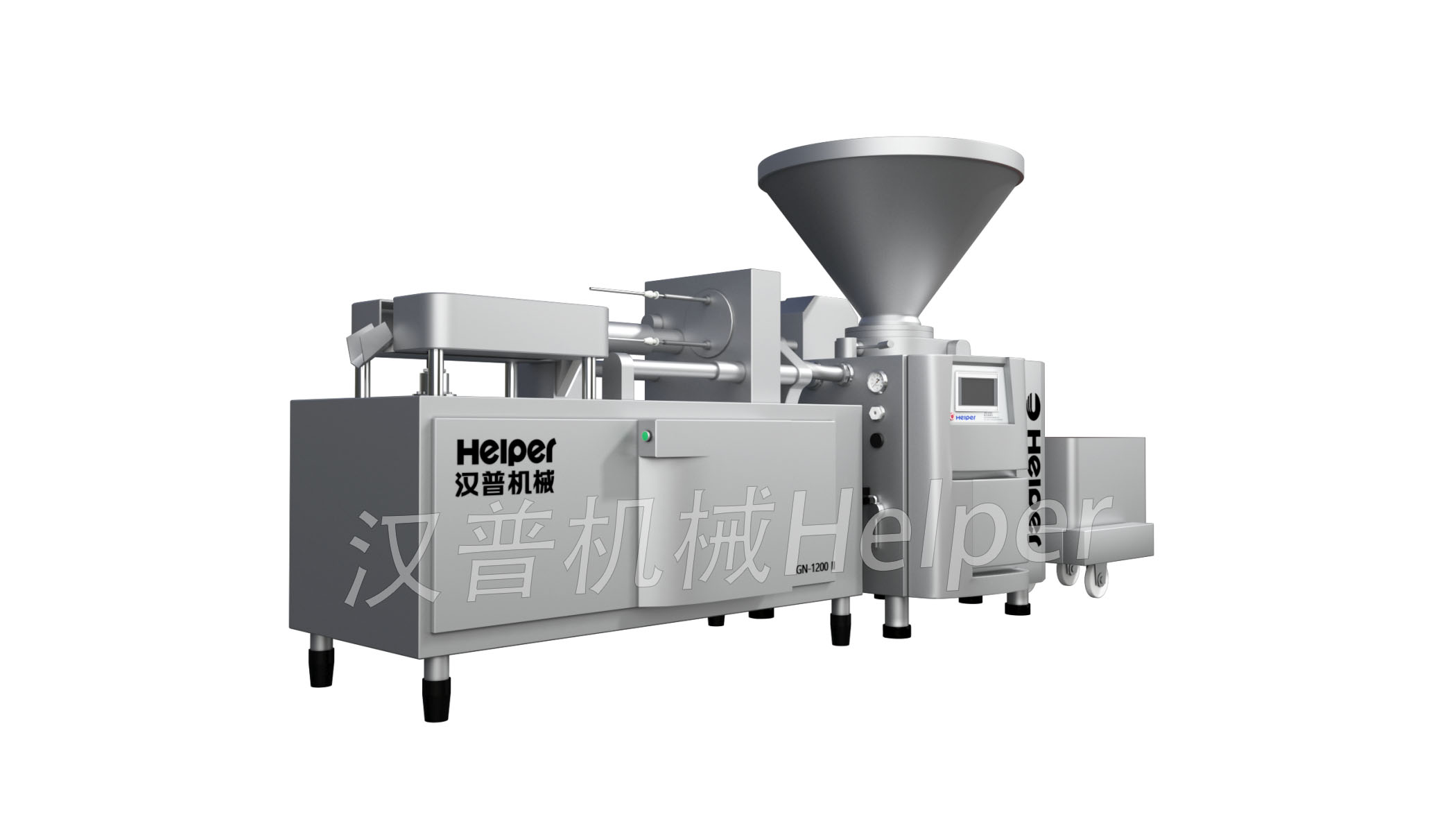

Automatic Sausage Linker
Features and characters
--- adopts servo control system, running accurate and reliable.
--- high automatic design with precise hanging of the product..
--- Double filling/twisting tubes structure to simplify the casing replacement.
--- Twisting length and twisting circles are stepless adjustable.
--- Connected with automatic hanging machine easily
--- Stop running when run out of casing.
--- Operation language is customized according to requirements.
--- Hygienic design concept.
Main Technical Parameters

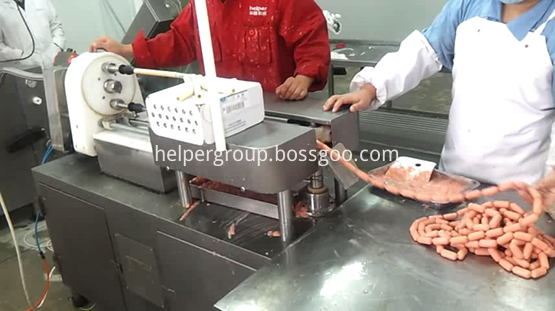

high speed twisting machine:
Twisting speed: 1200 circle / min
Twisting length: 15-180 mm
Nylon casing semi-perimeter: 30-38 mm
Collagen casing diameter: 13-35 mm
Power: 2.65 KW Volatge: 380 V
Air pressure: 0.5-0.8 Mpa
Dimension: 1460x620x1200 mm
Parameters of hanging machine:
Maximum unilateral hang length: 520 mm
Power:1.3 KW
Hanger dimension: 2595x630x1041 mm
High Speed Linking System Film
