Powder Feeding Systems

Get Latest Price

Payment Type:	T/T
Incoterm:	FOB,CIF
Min. Order:	1 Set/Sets
Transportation:	Ocean
Port:	TIANJIN/QINGDAO

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Brand: Helper

Origin: China

Packaging & Delivery

Selling Units	:	Set/Sets
Package Type	:	WOODENCASE

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

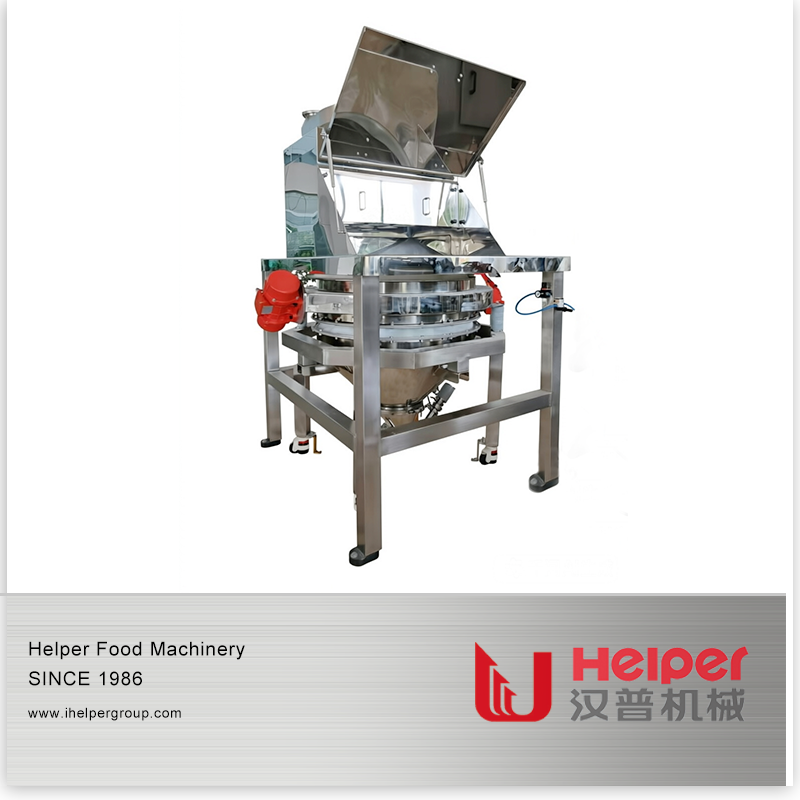

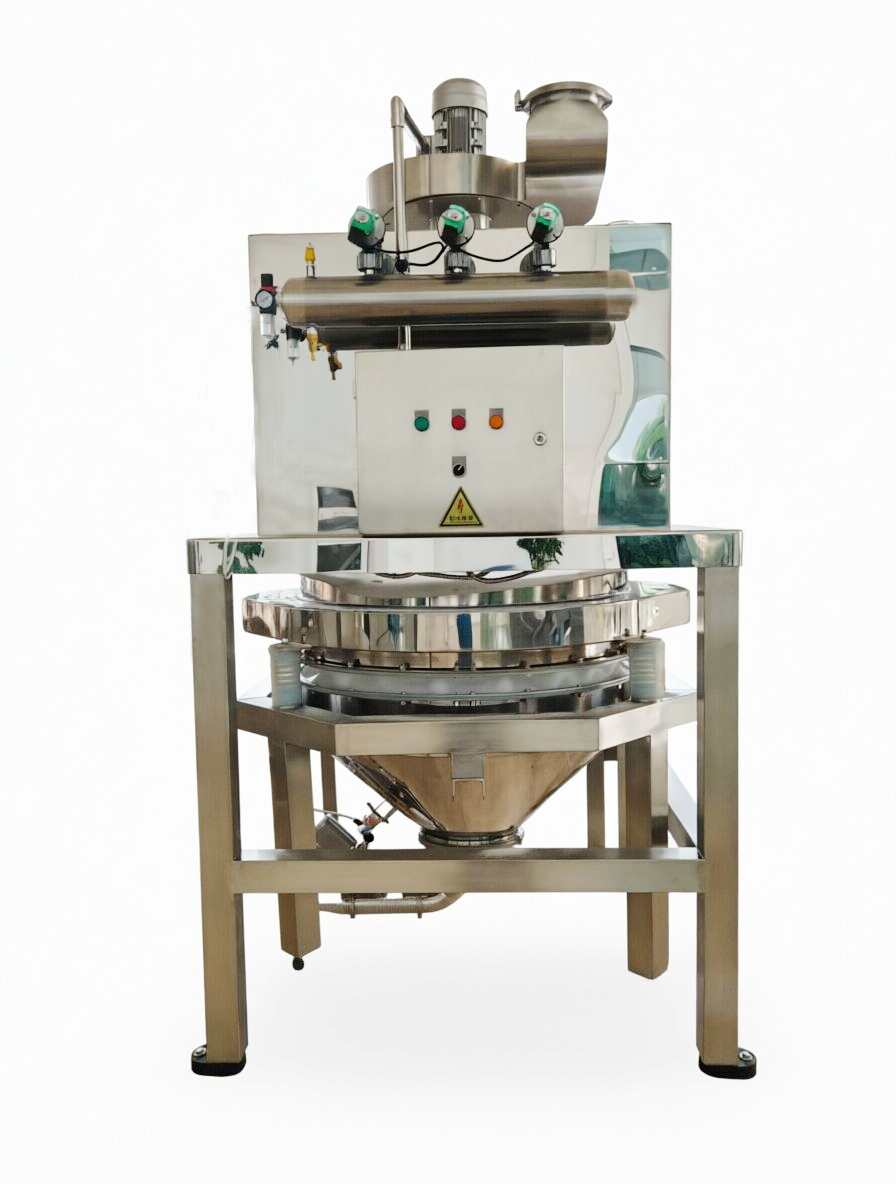

This automatic powder feeding device with a vibrating screen is specifically designed for Noodle Production Lines and serves as an important piece of equipment for modern bakery and noodle processing enterprises to achieve automated and standardized production.

Working Principle Of Powder Feeding Equipment :

During operation, powder raw materials such as flour are poured into the hopper. The built-in vibration motor then starts, causing the material to undergo continuous, high-frequency vibration on both the hopper and the vibrating screen.

The vibration evenly spreads the flour across the screen mesh, allowing fine flour particles to quickly pass through the screen and fall into the lower storage hopper. Meanwhile, impurities or agglomerates such as threads, labels, insect eggs, hard lumps, and other contaminants that may be present in the flour are effectively intercepted by the screen, achieving automatic impurity removal.

After sieving, the purified flour flows by gravity from the discharge port at the bottom of the lower storage hopper and is smoothly conveyed through connecting pipes into the dough mixer below, where it awaits mixing with liquids.

Performance and Advantages Of Food Grade Powder Feeding System:

1.The entire machine is made of high-quality 304 food-grade stainless steel, making it sturdy, durable, corrosion-resistant, and resistant to bacterial growth. Its smooth surface has no dead corners, making disassembly and cleaning very convenient.

2.It integrates "automatic feeding" with "vibratory sieving." While conveying flour, it efficiently removes various impurities and agglomerates from the raw materials, ensuring that the flour entering the dough mixer is pure and fine, thereby safeguarding the hygiene and quality of the final flour-based products (such as noodles, bread, dumplings, etc.) from the source.

3.The equipment features a fully enclosed structure, from material addition to discharge, with the entire process carried out in a sealed environment, which keeps the production area clean and reduces material waste.

4.With a high degree of automation, it replaces manual handling and manual sieving, making it suitable for large-volume, continuous production.

Video Of Stainless Steel Powder Feeder ：

https://www.youtube.com/watch?v=hspLMKx9RAk
