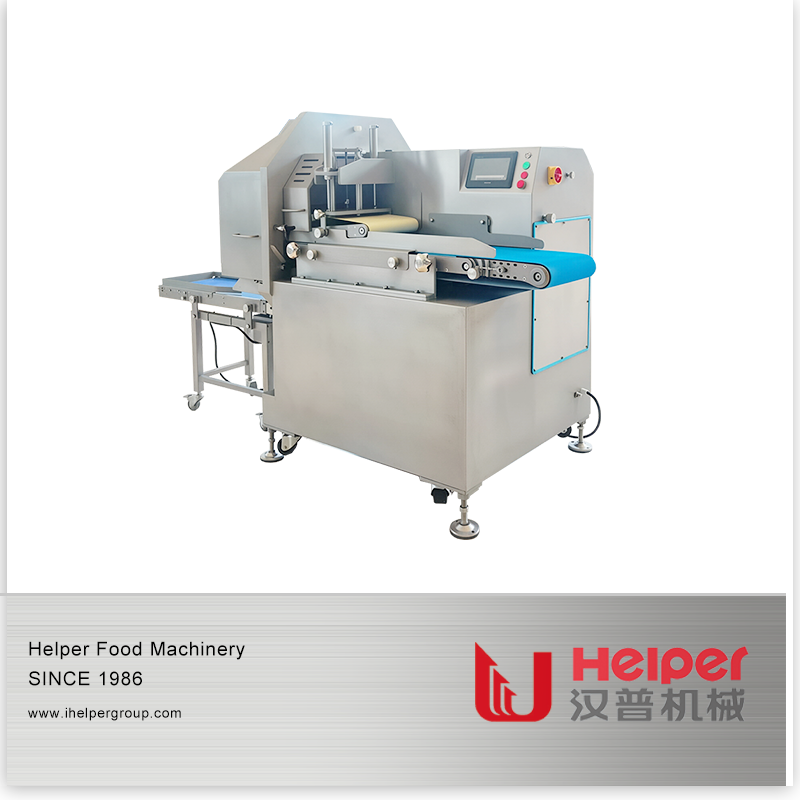

Meat Dicer Machine

Advantages of the frozen meat dicer machine:

This automatic frozen meat dicer is specifically designed for dicing frozen meat blocks with a thickness of 35 mm.

The entire machine is made of stainless steel.

It can cut frozen meat at temperatures as low as -8°C.

The cutting speed can reach up to 200 times per minute.



Its control system offers multiple cutting functions:

Continuous dicing and conveying (depending on the type of food).

Intermittent dicing and conveying (depending on the type of food).

Slicing mode: Remove the knife set, and the blades work independently for slicing.

Stripping mode: The blades stop working, and the knife set works independently for strip cutting.

Supports switching between 10 preset parameters.



Main data of meat dicing machine:

Overall dimensions: 2220 x 1060 x 1355 mm (including conveyor)

Product dimensions: 420 x 230 x 680 mm (max.)

Dimensional accuracy: 0.1 mm

Cutting range: 10–30 mm

Cutting speed: 280 strokes/minute (max.)

Power supply: 3-phase 4-wire system, 380 V

Equipment power: 3.2 kW

Cutting temperature: -4°C to 0°C

Maximum width: 300 mm

Maximum thickness: 35 mm

Video of meat dicer machine：

https://www.youtube.com/shorts/vsMDD_BI8eM
