Automatic Mechanical Double clipper

Automatic Mechanical clipper

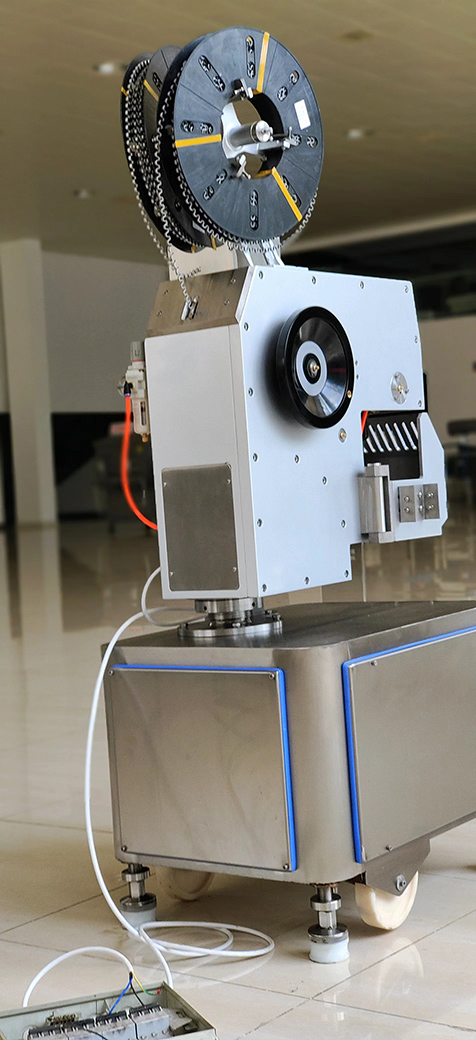

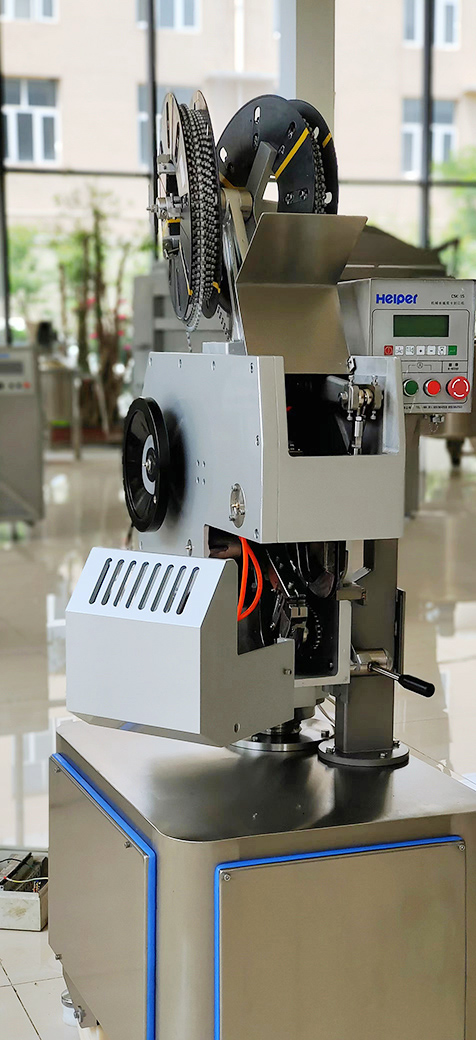

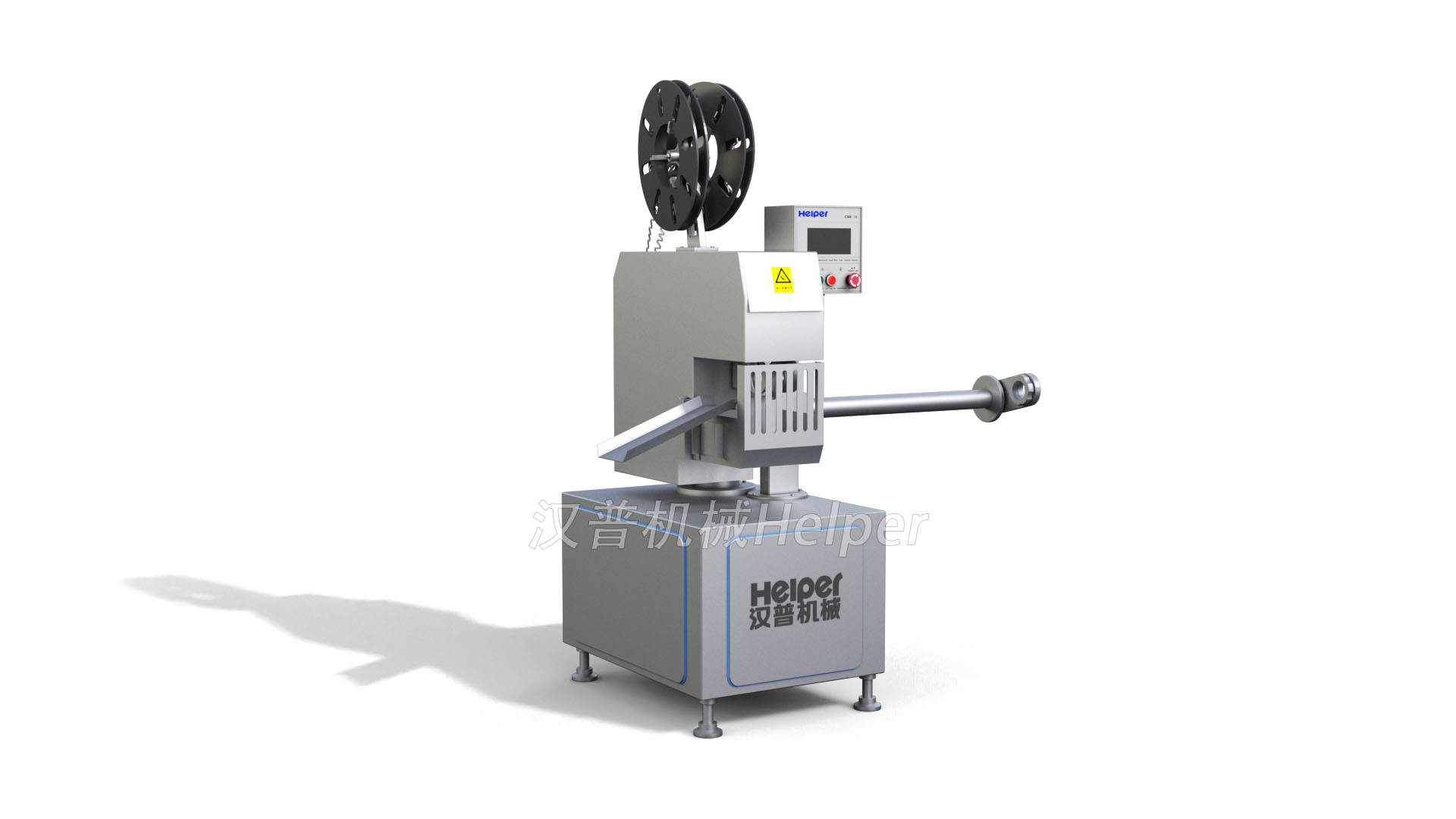

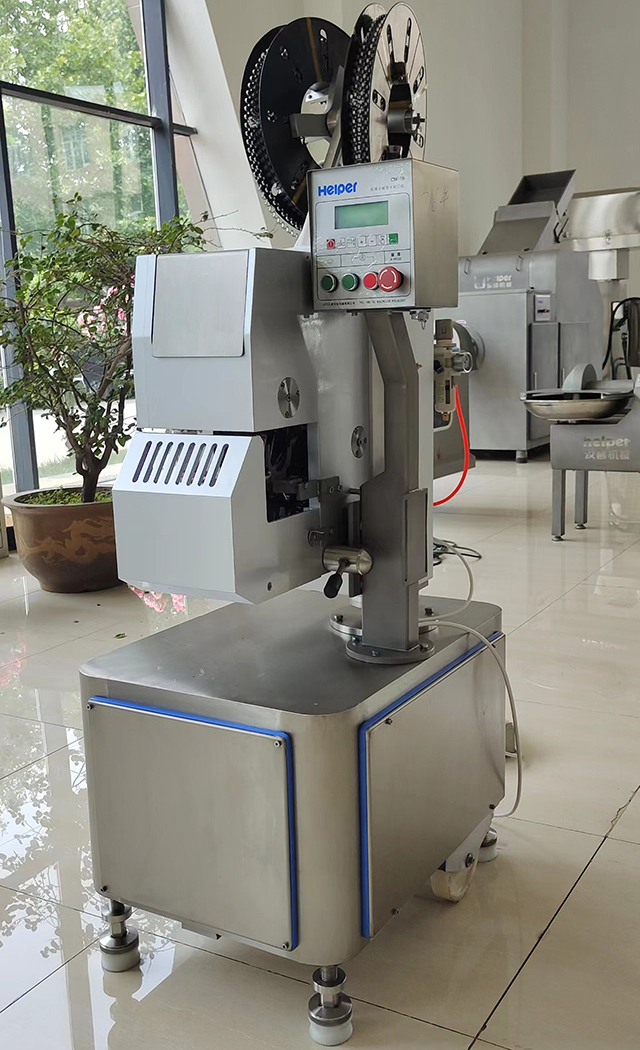

Automatic Mechanical Double clipper is the first generation of automatic double cipper which is tested and proved as a reliable one for sausage making. Connected to sausage filler, by closing sausages in artificial casing with aluminum clips, it will help producers to make an automatic manufacturing line. With compact structure and reliable transmission, the function of clipping and closing is completed by driving of servo motor and wheel gear mechanism. With interactional signals from the stuffer, it has perfect portioning or length filling capability. The machine body, key parts and transmission parts are all made of excellent aluminum alloy and stainless steel, which meet all hygienic requirements. The original clips from Helper and together with CSK-15 clipping machine guarantee top quality, efficient, trouble-free production.

Features and characters

---Easy connected with various stuffing filling machines to realize automatic production.
--- Quipped with automatic counting and cutting system, about 0-9 ties adjustable.

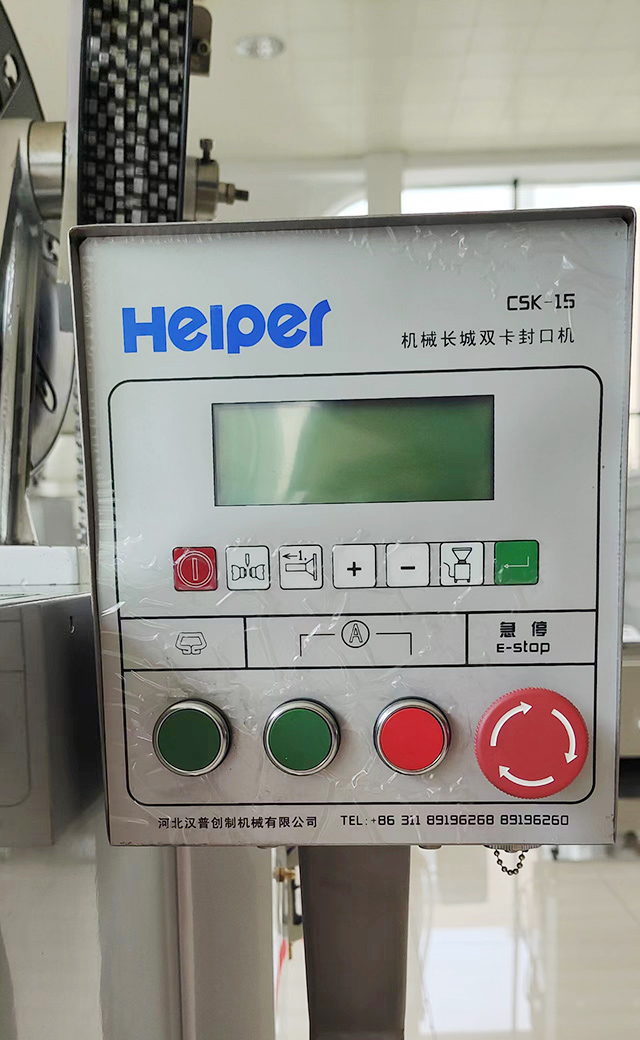

---Advanced control system of electropneumatic operation with PLC.
--- Automatic oiling lubrication system contribute to the long service life.
---Unique design and work mode help on minimum maintenance.
---Easy change of clip without tools.
--- Double vacuum filling horns system for changing of casing easily.
---Stainless steel structure and excellent surface treatment make for easy cleaning.

Main Technical Parameters

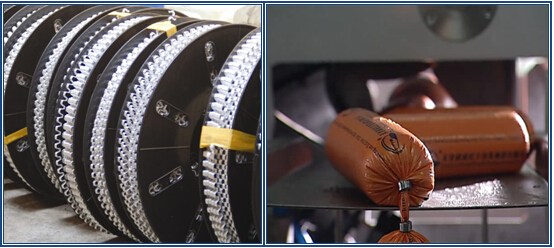

Available clip: aluminium great wall clip 15-8,15-9.
Available casing: 50-120mm (semi perimeter)
Clip speed: 0-120 times/ minute adjustable
Power:3.5kw
Voltage: Alternating Current 220V
Air source: working pressure 0.5~0.6Mpa(for cutting knife)
Dimension: L×W×H=760×750×1770mm
N.W.: 760kg
